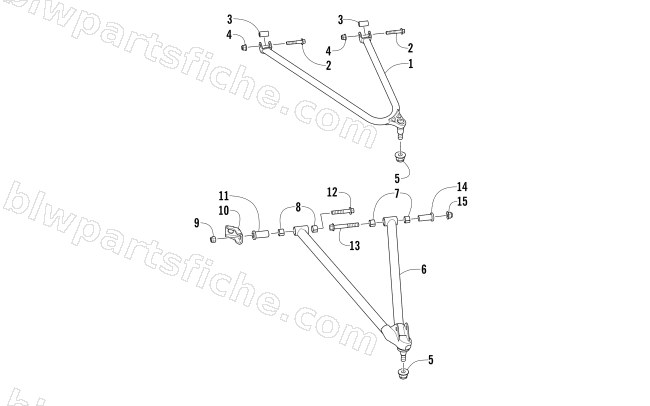

A-ARM ASSEMBLY
2015 M 6000 ES 153
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3703-150 | ARM,UPPER-RH 38"-BLK-PTD | 1 | $163.95 | |
| 1 | 3703-151 | ARM,UPPER-LH 38"-BLK-PTD | 1 | $163.95 | |
| 2 | 8413-645 | SCREW,CAP-HFH M6X1.0X45 CL10.9 SILV | 1 | $1.78 | |
| 3 | 3603-258 | AXLE,A-ARM-UPPER-ALUM | 1 | $6.75 | |
| 4 | 8437-604 | NUT,HEX FLG-NYL LOCK M6X1.0 CL10 SILV | 1 | $0.95 | |
| 5 | 8427-202 | NUT,HEX FLG-NYL LOCK M12X1.25 CL8 Z&Y | 1 | $1.23 | |
| 6 | 3703-152 | A-ARM,LOWER-RH 38"-BLK FABR | 1 | $231.95 | |
| 6 | 3703-153 | A-ARM,LOWER-LH 38"-BLK FABR | 1 | $231.95 | |
| 7 | 1603-895 | BEARING, 10DU10-FRONT SUSPENSION | 1 | $5.37 | |
| 8 | 2603-911 | BEARING,SPLIT-18 X 20 X 15 | 1 | $4.13 | |
| 9 | 1623-965 | NUT,HEX-THK NYL M12X1.25 CL8 Z&Y(DIN) | 1 | $1.50 | |
| 10 | 2603-909 | BRACE,LOWER A-ARM | 1 | $9.59 | |
| 11 | 2603-916 | AXLE,A-ARM-LWR FRT | 1 | $13.73 | |
| 12 | 1623-953 | SCREW,CAP-HFH M12X1.25X76 CL 10.9 MZ | 1 | $3.44 | |
| 13 | 8409-075 | SCREW,CAP-HFH M10X1.25X75 CL10.9 Z&Y | 1 | $1.92 | |
| 14 | 3603-259 | AXLE,A-ARM-LWR-REAR-ALUM | 1 | $15.11 | |
| 15 | 8427-002 | NUT,HEX FLG-NYL LOCK M10X1.25 CL8 Z&Y | 1 | $0.95 |
