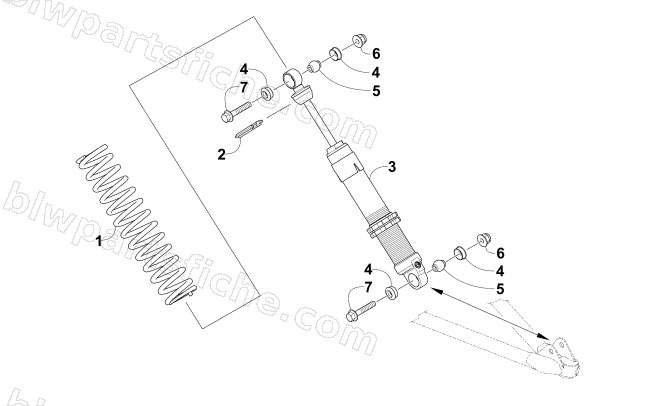

2015 Arctic Cat M 6000 ES 153 — FRONT SHOCK ABSORBER ASSEMBLY
2015 M 6000 ES 153
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 2703-861 | SPRING,SHOCK-95 LB X 13"-PTD WHT | 1 | $74.95 | |
| 2 | 3604-200 | RETAINER,SPRING-POWDER METAL | 1 | $6.06 | |
| 3 | 3703-468 | SHOCK, SKI 436.27MM | 1 | $137.95 | |
| 4 | 3603-260 | BUSHING,SHOCK-SPHERICAL-BLK | 1 | $3.44 | |
| 5 | 3603-261 | AXLE,SHOCK - SPHERICAL | 1 | $16.49 | |
| 6 | 8437-804 | NUT,HEX FLG-NYL LOCK M8X1.25 CL10 SILV | 1 | $0.81 | |
| 7 | 8413-850 | SCREW,CAP-HFH M8X1.25X50 CL10.9 SILV | 1 | $3.44 |
