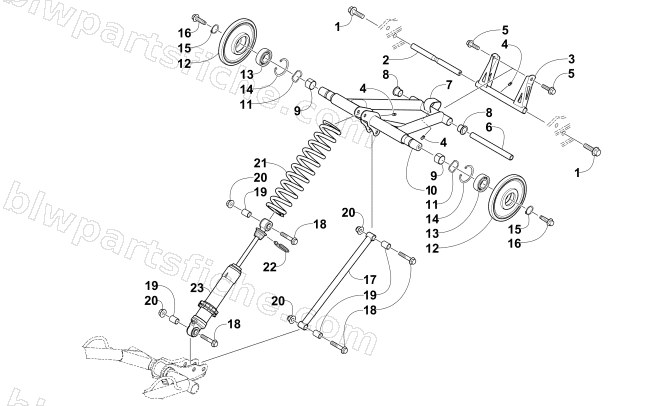

REAR SUSPENSION REAR ARM ASSEMBLY
2015 M 8000 153
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 8408-826 | SCREW,CAP-HFH M8X1.25X25 CL8.8 W/2353 | 1 | $0.40 | |
| 2 | 3604-857 | AXLE,XBRC-HC-16.51X222.25 (M8X1.25) | 1 | $38.95 | |
| 3 | 2704-422 | ARM,REAR-8MM-BLK-FABR | 1 | $60.95 | |
| 4 | 1623-010 | FIT,GREASE-1/4-28 UNF-SELF THREAD | 1 | $1.92 | |
| 5 | 8413-831 | SCREW,CAP-HFH M8X1.25X30 CL10.9 W/2353 | 1 | $3.16 | |
| 6 | 3604-855 | AXLE,ALUM-19.05 X 173.15-MACH | 1 | $29.95 | |
| 7 | 2704-420 | ARM,IDLER-8MM-BLK-FABR | 1 | $199.95 | |
| 8 | 3604-028 | BUSHING, FLARED -BRONZE .735" x .751 ID | 1 | $3.57 | |
| 9 | 2604-852 | BEARING, 16DU12 | 1 | $10.97 | |
| 10 | 3604-854 | AXLE,INNER CARRIAGE | 1 | $75.95 | |
| 11 | 1623-692 | WASHER,WAVE-1.028X1.268X.028 | 1 | $2.47 | |
| 12 | 2604-699 | WHEEL, IDLER-6.38 (NO INSR) | 1 | $53.95 | |
| 13 | 0107-598 | BEARING,BALL-25MM | 1 | $12.35 | |
| 14 | 0123-798 | RING,INTERNAL-RETAINING | 1 | $1.64 | |
| 15 | 1623-690 | SNAP RING,EXTL-.925 ID | 1 | $1.09 | |
| 16 | 1623-836 | SCREW,CAP-HFH-M10X1.25X30-CL8.8-Z&Y-MPT | 1 | $2.75 | |
| 17 | 1704-724 | LINK,REAR SHOCK (BLK)-MACH | 1 | $39.95 | |
| 18 | 8413-845 | SCREW,CAP-HFH M8X1.25X45 CL10.9 SILV | 1 | $0.26 | |
| 19 | 3604-846 | SLEEVE,SHOCK EYELET-8mm ID | 1 | $2.47 | |
| 20 | 8437-804 | NUT,HEX FLG-NYL LOCK M8X1.25 CL10 SILV | 1 | $0.81 | |
| 21 | 2703-502 | SPRING,COMP-175 LB X 13"-PTD BLK | 1 | $79.95 | |
| 22 | 3604-200 | RETAINER,SPRING-POWDER METAL | 1 | $6.06 | |
| 23 | 2704-682 | SHOCK, REAR ARM-406.5 | 1 | $137.95 |
