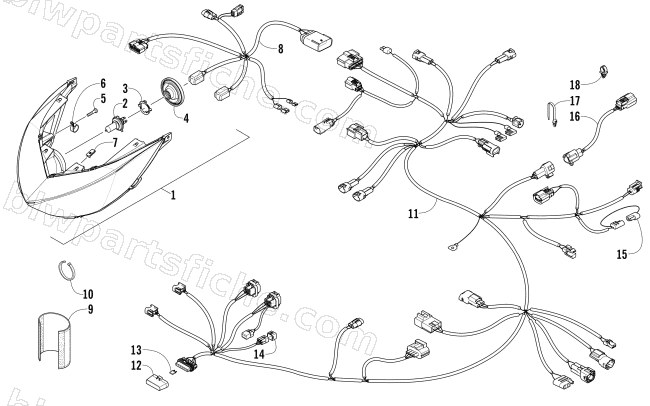

HEADLIGHT AND WIRING ASSEMBLIES
2015 M 8000 HCR 153
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0609-899 | R/B 0609-967 | 1 | $417.95 | |
| 2 | 0109-724 | R/B 0609-956 | 1 | $29.95 | |
| 3 | 0409-097 | RETAINER,H/L HS-1 ECE | 1 | $34.95 | |
| 4 | 0609-919 | BOOT,BULB | 1 | $29.95 | |
| 5 | 1623-915 | SCREW,PLASTITE-TSPNH-1/4-10 X 1.25 RIE B | 1 | $1.50 | |
| 6 | 1623-675 | CLAMP,CABLE,11/16 INSUL-1/4" MTG | 1 | $1.92 | |
| 7 | 0423-031 | NUT,SPEED M6 X 1.0 U-TYPE | 1 | $0.95 | |
| 8 | 1686-638 | HARNESS,HOOD-2 STRK | 1 | $126.95 | |
| 9 | 5706-700 | WRAP,WIRE HARNESS-11" X 10.50" (hi temp) | 1 | $65.95 | |
| 10 | 0123-811 | TIE,CABLE-4 INCH PLT1M | 1 | $0.26 | |
| 10 | 0123-788 | TIE,CABLE-8.5/7.5/7.4 | 1 | $0.12 | |
| 10 | 0123-903 | TIE,CABLE 11.50 | 1 | $0.54 | |
| 11 | 1686-737 | HARNESS,MAIN-800 WITH VIP | 1 | $596.95 | |
| 12 | 0609-889 | COVER,FUSE HOLDER | 1 | $22.01 | |
| 13 | 0430-068 | FUSE,MINI-7.5 AMP | 1 | $2.95 | |
| 13 | 0430-031 | FUSE, MINI-15A | 1 | $4.54 | |
| 13 | 0430-098 | FUSE,MINI-20A | 1 | $2.95 | |
| 15 | 0486-164 | TETHER,REAR ACCESSORY CONNECTOR | 1 | $12.35 | |
| 16 | 1686-641 | HARNESS, EXTENSION-TAILIGHT-1830MM | 1 | $29.95 | |
| 17 | 0623-677 | CABLE TIE,PUSH MOUNT-X MAS CLIP | 1 | $1.09 | |
| 18 | 0623-101 | ROUTING CLIP,SNAP-IN | 1 | $5.51 |
