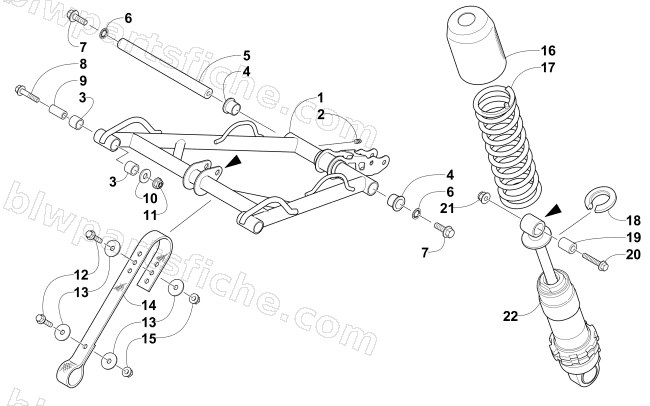

REAR SUSPENSION FRONT ARM ASSEMBLY
2015 M 8000 HCR 153
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 2704-345 | ARM,FRT-W/PIVOT-TA GREEN-FABR | 1 | $318.95 | |
| 2 | 1623-010 | FIT,GREASE-1/4-28 UNF-SELF THREAD | 1 | $1.92 | |
| 3 | 0604-889 | BUSHING,FRONT ARM | 1 | $3.71 | |
| 4 | 3604-028 | BUSHING, FLARED -BRONZE .735" x .751 ID | 1 | $3.57 | |
| 5 | 3604-853 | AXLE,ALUM-19.05 X 219.35-MACH | 1 | $29.95 | |
| 6 | 1623-992 | WASHER,LOCK-M10 INTL TOOTH TYP J Z&C | 1 | $0.26 | |
| 7 | 8413-036 | SCREW,CAP-HFH M10X1.25X35 CL10.9 W/2353 | 1 | $7.72 | |
| 8 | 8408-065 | SCREW,CAP-HFH M10X1.25X65 CL8.8 Z&Y | 1 | $3.16 | |
| 9 | 3604-665 | AXLE,FRONT ARM-15.88OD X 10.3ID X 41.6MM | 1 | $19.25 | |
| 10 | 8450-163 | WASHER,FLAT-M10-11.12X28.00 X 2.80Z&Y | 1 | $0.95 | |
| 11 | 8427-002 | NUT,HEX FLG-NYL LOCK M10X1.25 CL8 Z&Y | 1 | $0.95 | |
| 12 | 8408-630 | SCREW,CAP-HFH M6X1.0X30 CL8.8 Z&Y | 1 | $0.95 | |
| 13 | 8450-109 | WASHER,FLAT M6-6.87X25.4X2.32 Z&Y | 1 | $0.68 | |
| 14 | 3604-391 | STRAP,LIMITER-FRONT ARM | 1 | $15.11 | |
| 15 | 8427-602 | NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z&Y | 1 | $0.12 | |
| 16 | 0604-790 | COVER,SUSPENSION SPRING (SHORT) | 1 | $24.77 | |
| 17 | 1704-236 | SPRING,COMP-FRT ARM -110#-PTD BLK | 1 | $49.95 | |
| 18 | 3604-200 | RETAINER,SPRING-POWDER METAL | 1 | $6.06 | |
| 19 | 3604-845 | AXLE,SHOCK-FRT ARM-M8 | 1 | $2.61 | |
| 20 | 8413-845 | SCREW,CAP-HFH M8X1.25X45 CL10.9 SILV | 1 | $0.26 | |
| 21 | 8437-804 | NUT,HEX FLG-NYL LOCK M8X1.25 CL10 SILV | 1 | $0.81 | |
| 22 | 2704-407 | SHOCK,FRONT ARM 285.7 HCR 2 - STROKE | 1 | $153.95 |
