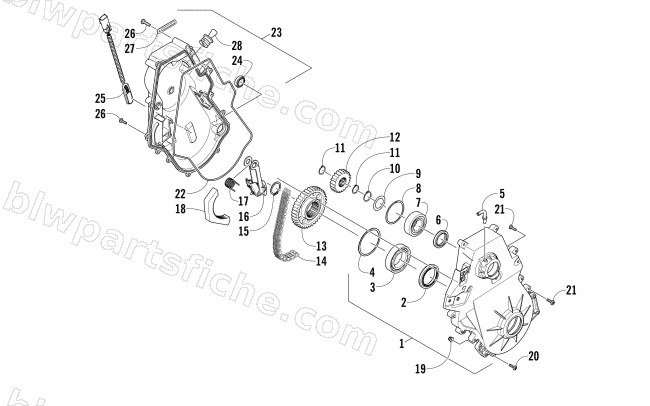

CHAIN CASE ASSEMBLY
2015 M 8000 MCCLURE LTD 153
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1702-363 | R/B 1702-483 | 1 | $269.95 | |
| 2 | 2602-172 | SEAL,OIL-HIGH COMP-50 X 65 X 8MM | 1 | $29.95 | |
| 3 | 2602-281 | BEARING,45 X 75 X 16 - 6009 | 1 | $13.73 | |
| 4 | 2602-280 | RING,SNAP(MKA-75) | 1 | $3.57 | |
| 5 | 2602-641 | FITTING,VENT-W/CHECK BALL | 1 | $8.21 | |
| 6 | 2602-204 | SEAL,35 X 47 X 7 - V | 1 | $16.49 | |
| 7 | 2602-734 | BEARING,30 X 62 X 20 | 1 | $20.63 | |
| 8 | 2602-236 | SNAP RING(MKA-62) | 1 | $3.16 | |
| 9 | 0648-443 | WASHER,FLAT-1.188 X 1.730 X .060 | 1 | $1.37 | |
| 10 | 1423-175 | RING,RETAINING-EXTERNAL (30MM SHAFT) | 1 | $1.92 | |
| 11 | 1623-690 | SNAP RING,EXTL-.925 ID | 1 | $1.09 | |
| 12 | 2602-666 | SPROCKET,REX-19T FWD-(15 WIDE/19 SPLINE) | 1 | $27.95 | |
| 12 | 2602-582 | SPROCKET,REX-19T FWD-(13 WIDE/19 SPLINE) | 1 | $22.01 | |
| 13 | 2602-584 | SPROCKET,REX-50T FWD (13 WIDE/34 SPLINE) | 1 | $117.95 | |
| 13 | 2602-620 | SPROCKET,REX-50T FWD-(13W/34 SPL)ALUM | 1 | $234.95 | |
| 14 | 2602-373 | CHAIN,REXNORD-90P (15 WIDE) | 1 | $200.95 | |
| 14 | 2602-370 | CHAIN,REXNORD-90P (13 WIDE) | 1 | $200.95 | |
| 15 | 2602-629 | SNAP RING-(MSH-43) | 1 | $2.61 | |
| 16 | 1702-319 | R/B 1702-398 | 1 | $43.95 | |
| 17 | 2602-336 | SPRING,TORSION | 1 | $1.37 | |
| 18 | 2602-230 | BLOCK,RATCHET-CHAIN ADJ | 1 | $12.35 | |
| 19 | 8427-602 | NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z&Y | 1 | $0.12 | |
| 20 | 8476-630 | SCREW,MACH-TSTRH M6X1.0X30 Z&Y | 1 | $1.09 | |
| 21 | 8468-622 | SCREW,MACH-TSPNH M6X1.0X20 CL8.8 W/204 | 1 | $1.09 | |
| 22 | 2602-817 | R/B 3602-079 | 1 | $14.95 | |
| 23 | 1702-178 | R/B 1702-445 | 1 | $180.95 | |
| 24 | 2602-232 | GLASS,SIGHT | 1 | $13.73 | |
| 25 | 0730-172 | SENSOR,SPEEDOMETER-KIT | 1 | $79.95 | |
| 26 | 8468-626 | SCREW,MACH-TSPNH M6X1.0X25 CL8.8 W/2353 | 1 | $1.09 | |
| 27 | 1623-984 | CLAMP,WIRE - 76.14MM LG W/6.25 HOLE | 1 | $6.20 | |
| 28 | 2602-440 | PLUG,DROPCASE-2 STROKE | 1 | $3.85 |
