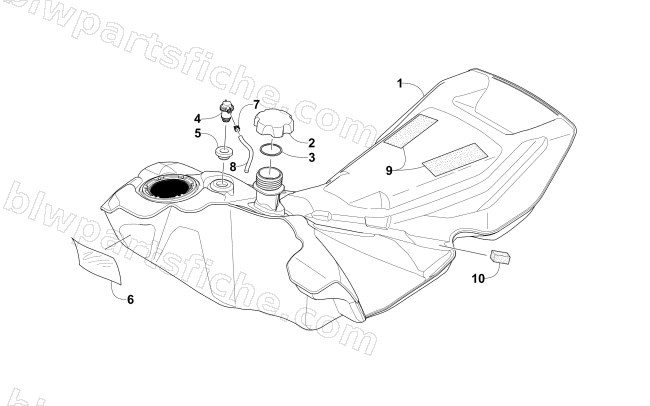

GAS TANK ASSEMBLY
2015 M 8000 MCCLURE LTD 153
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1770-032 | TANK,FUEL-2 STRK MTN-S/P ASSY | 1 | $378.95 | |
| 2 | 2670-153 | CAP,FUEL-91 MINIMUM OCTANE REQUIRED | 1 | $13.73 | |
| 4 | 1670-787 | VALVE,CHECK | 1 | $34.95 | |
| 5 | 1670-822 | GROMMET,3/4"-FUEL TANK | 1 | $3.85 | |
| 6 | 0619-206 | TAPE,ALUM FOIL - 6" X 30 FT | 1 | $7.77 | |
| 7 | 1623-233 | CLAMP, HOSE-10.41mm ID | 1 | $0.68 | |
| 8 | 6101-009 | HOSE,.235 ID X .370 OD (50') | 1 | $469.95 | |
| 8 | 6101-001 | HOSE,.235 ID X .370 OD (100') | 1 | $892.95 | |
| 9 | 6606-849 | RETAINER,SEAT VELCRO HOOK W/PSA | 1 | $1.37 | |
| 10 | 0617-667 | FOAM,GAS TANK | 1 | $1.92 |
