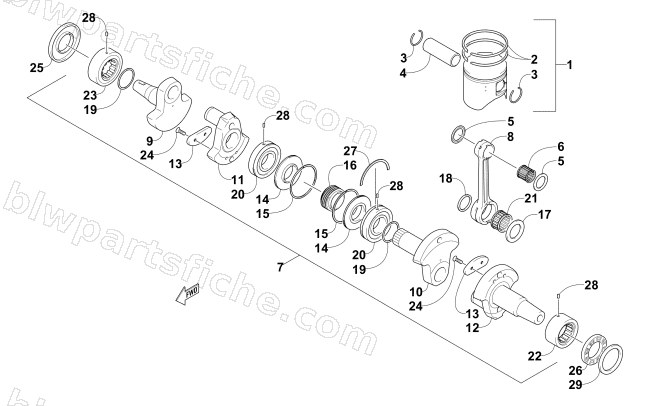

PISTON AND CRANKSHAFT
2015 M 8000 SNO PRO 153
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3007-877 | PISTON ASSY (010 800 L/C) | 1 | $260.95 | |
| 2 | 3006-394 | RING SET,PISTON 860 L/C | 1 | $114.95 | |
| 3 | 3005-304 | CIRCLIP,M22 | 1 | $3.30 | |
| 4 | 3007-878 | PIN,PISTON | 1 | $45.95 | |
| 5 | 3008-500 | WASHER,22MM | 1 | $5.92 | |
| 6 | 3008-503 | R/B 0932-011 | 1 | $39.95 | |
| 7 | 3007-879 | CRANKSHAFT ASSY | 1 | $3,212.95 | |
| 8 | 3007-880 | ROD,CONNECTING | 1 | $316.95 | |
| 9 | 3007-881 | CRANKSHAFT-RH | 1 | $539.95 | |
| 10 | 3007-882 | CRANKSHAFT-CENTER | 1 | $517.95 | |
| 11 | 3007-883 | WHEEL,CRANKSHAFT | 1 | $479.95 | |
| 12 | 3007-884 | CRANKSHAFT-LH | 1 | $557.95 | |
| 13 | 3007-667 | BALANCER,CRANKSHAFT | 1 | $29.95 | |
| 14 | 3006-508 | RACE,MIDDLE CRANK SEAL | 1 | $78.95 | |
| 15 | 3005-508 | RING,MIDDLE CRANK SEAL | 1 | $34.95 | |
| 16 | 3007-885 | GEAR,DRIVE-OIL PUMP | 1 | $288.95 | |
| 17 | 3004-147 | WASHER, M30X42X3 | 1 | $17.87 | |
| 18 | 3006-489 | SHIM,30X38X1 | 1 | $10.97 | |
| 19 | 3008-495 | WASHER,40MM | 1 | $4.68 | |
| 20 | 3008-421 | BEARING,BALL,M35 | 1 | $125.95 | |
| 21 | 3007-532 | BEARING,CRANK PIN | 1 | $180.95 | |
| 22 | 3007-439 | BEARING-LH | 1 | $303.95 | |
| 23 | 3006-551 | BEARING,RH | 1 | $277.95 | |
| 24 | 3007-440 | SCREW | 1 | $2.06 | |
| 25 | 3007-533 | SEAL,OIL-R (35X75X7) | 1 | $100.95 | |
| 26 | 3003-759 | R/B 0930-051 | 1 | $54.95 | |
| 27 | 3003-359 | C-RING,CRANKSHAFT,M75 | 1 | $20.63 | |
| 28 | 3003-658 | PIN,ALIGNMENT | 1 | $3.16 | |
| 29 | 3006-552 | SPACER,OIL SEAL | 1 | $13.73 |
