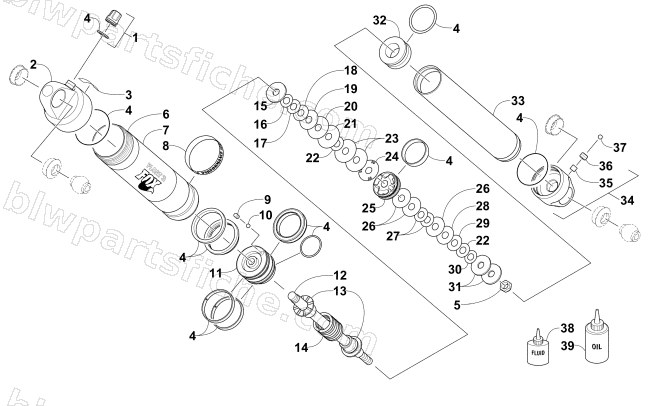

FRONT SUSPENSION SHOCK ABSORBER
2015 M 8000 SNO PRO LTD ES 153
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 0 | 3703-284 | SHOCK,SKI-FLOAT 3-17.08" | 1 | $733.95 | |
| 1 | 3603-366 | CAP,VALVE-FLOAT GEN II-BLK-W/ O-RING | 1 | $38.95 | |
| 2 | 3603-333 | SLEEVE,CAP ASSY-FLOAT GEN II | 1 | $167.95 | |
| 3 | 3603-359 | DECAL,AIR PRESSURE | 1 | $10.97 | |
| 4 | 3603-293 | KIT,REBUILD-SEAL/BEARING | 1 | $110.95 | |
| 5 | 3603-018 | NUT,LOCK,3/8-24THDX.562 FLATS | 1 | $2.95 | |
| 6 | 3603-301 | SLEEVE,FLOAT-DUAL WIPER-8.40"TLG-ASSY | 1 | $240.95 | |
| 7 | 3603-369 | DECAL,FLOAT 3-W/WARNINGS | 1 | $17.87 | |
| 8 | 3603-365 | DECAL,BAND-PERFORMANCE SERIES | 1 | $17.87 | |
| 9 | 1603-940 | SCREW-SET,8-32X.250 | 1 | $1.95 | |
| 10 | 1604-315 | BALL, BLEED | 1 | $4.95 | |
| 11 | 3603-291 | BEARING ASSY-1.834" BORE,.498" X 1.388" | 1 | $216.95 | |
| 12 | 2603-415 | SHAFT,SHOCK-.498 X 9.250" | 1 | $151.95 | |
| 13 | 2603-522 | GUIDE,SPRING-1.15OD X .800 TLG | 1 | $89.95 | |
| 14 | 2603-656 | SPRING,NEG.2.500 TLGX0.830 ID X 160 LBS | 1 | $97.95 | |
| 15 | 0603-540 | WASHER, TOP OUT-1.125OD X .378 ID X.093 | 1 | $16.49 | |
| 16 | 0603-332 | VALVE, .700X.010(3/8ID) | 1 | $12.95 | |
| 17 | 0603-335 | VALVE, .800X.010(3/8ID) | 1 | $12.95 | |
| 18 | 0603-338 | VALVE, .900X.010(3/8ID) | 1 | $14.95 | |
| 19 | 0603-344 | VALVE,1.100X.010(3/8ID) | 1 | $12.95 | |
| 20 | 0603-347 | VALVE,1.250X.010(3/8ID) | 1 | $13.95 | |
| 21 | 0603-350 | VALVE,1.300X.010(3/8ID) | 1 | $17.95 | |
| 22 | 0603-334 | VALVE, .800X.008 (3/8ID) | 1 | $12.95 | |
| 23 | 0603-349 | VALVE,1.300X.008(3/8ID) | 1 | $13.95 | |
| 24 | 3603-345 | VALVE, DB 3 PORT-1.300OD X.375IDX.010THK | 1 | $12.95 | |
| 25 | 3603-397 | PISTON,DAMPING-1.459 BORE-3 PORT | 1 | $167.95 | |
| 26 | 0603-343 | VALVE,1.100X.008(3/8ID) | 1 | $6.95 | |
| 27 | 0603-895 | VALVE, SHOCK .800X.004 (3/8 ID) | 1 | $7.95 | |
| 28 | 0603-340 | VALVE,1.000X.008(3/8ID) | 1 | $12.95 | |
| 29 | 0603-337 | VALVE, .900X.008(3/8ID) | 1 | $12.95 | |
| 30 | 0603-331 | VALVE, .700X.008(3/8ID) | 1 | $6.95 | |
| 31 | 2604-966 | WASHER,TOP OUT-.950OD X .378ID X .050TH | 1 | $4.95 | |
| 32 | 3603-023 | PISTON,FLOATING-1.459 BORE-NYLON-ASSY | 1 | $55.95 | |
| 33 | 3603-299 | BODY,SHOCK-1.459 BORE X 8.700 TLG | 1 | $162.95 | |
| 34 | 3603-332 | BODY,CAP-1.459"-PELLET PORT-ASSY | 1 | $167.95 | |
| 35 | 1604-428 | PLUG, RUBBER - VALVE | 1 | $13.73 | |
| 36 | 2603-338 | SCREW,SET-3/8-24 X .25" | 1 | $15.11 | |
| 37 | 2603-337 | BALL,AIR VALVE (.219 OD) - (FLOAT) | 1 | $7.16 | |
| 38 | 4639-012 | FLOAT FLUID,FOX RACING SHOX-8 OZ | 1 | $18.95 | |
| 39 | 5639-530 | SEMI-SYN SHOCK OIL-1 QUART | 1 | $26.95 |
