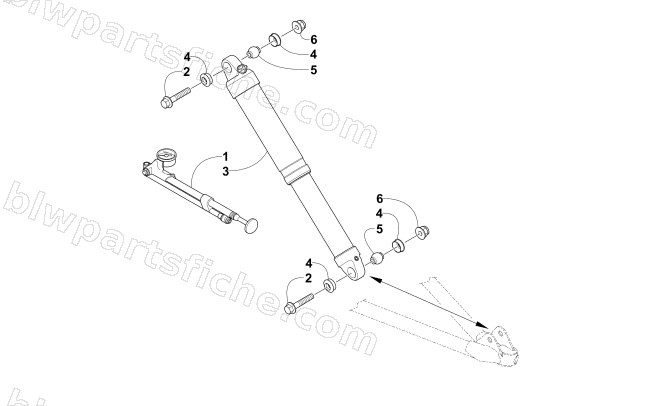

FRONT SHOCK ABSORBER ASSEMBLY
2015 M 8000 SNO PRO LTD ES 162
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 2603-614 | PUMP,FOX HP W/BLEED-150 PSI (FLOAT2) | 1 | $69.95 | |
| 2 | 8413-850 | SCREW,CAP-HFH M8X1.25X50 CL10.9 SILV | 1 | $3.44 | |
| 3 | 3703-284 | SHOCK,SKI-FLOAT 3-17.08" | 1 | $733.95 | |
| 4 | 3603-260 | BUSHING,SHOCK-SPHERICAL-BLK | 1 | $3.44 | |
| 5 | 3603-261 | AXLE,SHOCK - SPHERICAL | 1 | $16.49 | |
| 6 | 8437-804 | NUT,HEX FLG-NYL LOCK M8X1.25 CL10 SILV | 1 | $0.81 |
