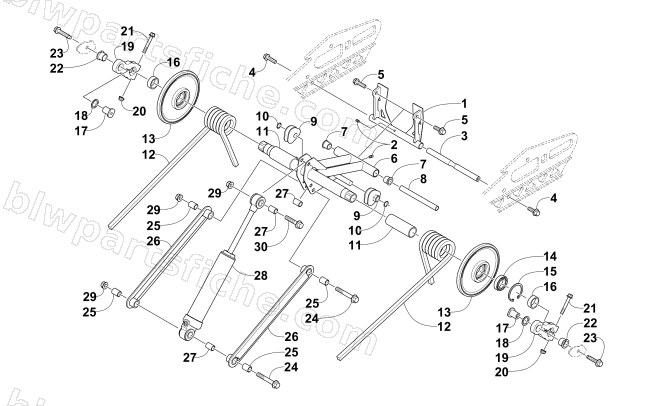

REAR SUSPENSION REAR ARM ASSEMBLY
2015 PANTERA 7000 LTD
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 2704-389 | ARM,REAR-BLK FABR | 1 | $66.95 | |
| 2 | 1623-010 | FIT,GREASE-1/4-28 UNF-SELF THREAD | 1 | $1.92 | |
| 3 | 3604-965 | AXLE,XBRC-HC-16.51OD X 222.25 LG | 1 | $26.95 | |
| 4 | 8413-031 | SCREW,CAP-HFH M10X1.25X30 CL10.9 W/2353 | 1 | $2.61 | |
| 5 | 8413-041 | SCREW,CAP-HFH M10X1.25X40 CL10.9 W/2353 | 1 | $3.16 | |
| 6 | 2704-729 | ARM,IDLER-.397 HEX-FABR--TOUR | 1 | $201.95 | |
| 7 | 1604-100 | BUSHING,FLARED-BRONZE (.628 ID) | 1 | $6.75 | |
| 8 | 3604-276 | AXLE,IDLER-LWR M10 X 173.15 | 1 | $34.95 | |
| 9 | 1604-204 | BLOCK,SPRING-ADJUSTER-RH | 1 | $19.25 | |
| 9 | 1604-205 | BLOCK,SPRING-ADJUSTER-LH | 1 | $19.25 | |
| 10 | 0623-138 | RING,RETAINING-ADJ BLOCK 9/16 | 1 | $0.68 | |
| 11 | 3604-288 | SLEEVE,SPRING-108mm | 1 | $3.44 | |
| 12 | 2704-560 | SPRING,SUSP-.405 SQ-RH 20LB-PTD BLK | 1 | $101.95 | |
| 12 | 2704-561 | SPRING,SUSP-.405 SQ-LH 20LB-PTD BLK | 1 | $101.95 | |
| 13 | 3604-264 | WHEEL,IDLER-7.12(NO INSERT/30mm BEARING) | 1 | $53.95 | |
| 14 | 3604-257 | BEARING,BALL-30MM | 1 | $34.95 | |
| 15 | 3604-256 | RING,RETAINING-INTERNAL | 1 | $4.95 | |
| 16 | 3604-674 | SPACER,OFFSET ARM-HEX SHAFT-12.81mm | 1 | $1.37 | |
| 17 | 3604-979 | AXLE,OFFSET ARM-M10 | 1 | $3.57 | |
| 18 | 3604-930 | WASHER,OFF SET ARM-.035"THK | 1 | $0.95 | |
| 19 | 2704-477 | OFFSET ARM, IDLER-HEX 18.15- ASSY | 1 | $53.95 | |
| 20 | 8427-802 | NUT,HEX FLG-NYL LOCK M8X1.25 CL8 Z&Y | 1 | $0.54 | |
| 21 | 8408-860 | SCREW,CAP-HFH M8X1.25X60 CL8.8 Z&Y | 1 | $1.37 | |
| 22 | 3604-713 | BUSHING,GARLOCK-12FDU12 | 1 | $3.85 | |
| 23 | 2623-002 | SCREW,CAP-HFH-M10X1.25X30-MPT-W/2353 | 1 | $3.71 | |
| 24 | 8408-090 | SCREW,CAP-HFH M10X1.25X90 CL8.8 Z&Y | 1 | $3.85 | |
| 25 | 3604-330 | AXLE, LINK-REAR SHOCK-M10 | 1 | $2.47 | |
| 26 | 0704-928 | LINK, REAR SHOCK-12.60-PAINTED | 1 | $37.95 | |
| 27 | 3604-109 | SLEEVE,SHOCK EYELET-10mm ID | 1 | $4.40 | |
| 28 | 2704-684 | SHOCK, REAR-384 TOUR | 1 | $190.95 | |
| 29 | 8427-002 | NUT,HEX FLG-NYL LOCK M10X1.25 CL8 Z&Y | 1 | $0.95 | |
| 30 | 8408-045 | SCREW,CAP-HFH M10X1.25X45 CL8.8 Z&Y | 1 | $4.68 |
