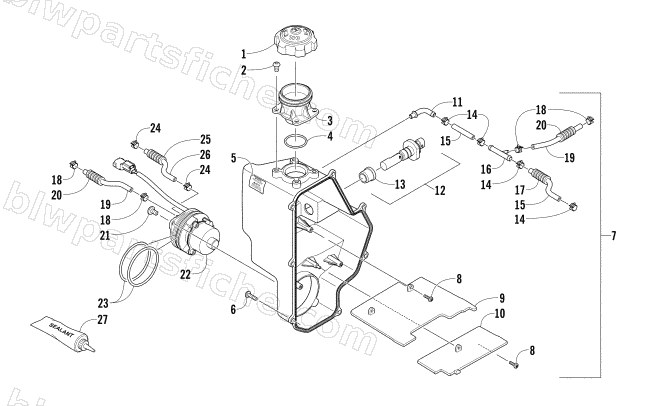

OIL TANK ASSEMBLY
2015 XF 6000 LXR 137
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 2670-447 | R/B 2670-643 | 1 | $21.95 | |
| 2 | 1623-969 | SCREW,MAG FORM-TXPH-M6X2.0X12 Z&C | 1 | $1.64 | |
| 3 | 2670-329 | NECK,OIL TANK | 1 | $8.21 | |
| 5 | 0621-786 | DECAL,OIL TANK-C TEC2 OIL | 1 | $3.85 | |
| 6 | 1623-814 | SCREW,MAG FORM-TXPH-M6X2.0X24 | 1 | $1.09 | |
| 7 | 1770-062 | R/B 1770-176 | 1 | $333.95 | |
| 8 | 2623-007 | SCREW,MAG FORM-TSPH-M4X1.5X15 | 1 | $3.16 | |
| 9 | 2670-354 | BAFFLE, UPPER-OIL TANK | 1 | $69.95 | |
| 10 | 2670-359 | BAFFLE, LWR-OIL TANK | 1 | $72.95 | |
| 11 | 0913-021 | FITTING, 90 -HOSE BARB | 1 | $15.11 | |
| 12 | 0609-915 | SWITCH, LEVEL-OIL | 1 | $49.95 | |
| 13 | 0609-924 | GROMMET, SWITCH-OIL LEVEL | 1 | $12.35 | |
| 14 | 1623-351 | CLAMP, HOSE-12.32MM ID | 1 | $0.95 | |
| 15 | 0610-968 | HOSE,OIL LINE-7.94IDX11.11OD-25FT | 1 | $84.95 | |
| 16 | 2670-362 | FITTING, TEE-5/16X5/16X5/32 | 1 | $3.57 | |
| 17 | 1619-359 | CONDUIT,FLEXIBLE-SLIT-1/2"X5' | 1 | $20.63 | |
| 18 | 2623-013 | CLAMP,HOSE-SPRING-CTL 5 | 1 | $1.09 | |
| 19 | 0610-967 | HOSE,OIL LINE-3.8IDX7.9OD-25FT | 1 | $120.95 | |
| 20 | 5706-536 | LOOM,PROTECTIVE-.350 ID SPLIT X 5 FT | 1 | $10.97 | |
| 21 | 8468-613 | SCREW,MACH-TSPNH M6X1.0X12 CL8.8 W/2343 | 1 | $1.50 | |
| 22 | 0912-003 | R/B 0912-005 | 1 | $481.95 | |
| 23 | 0930-046 | O-RING,2 5/8 ID X 2 7/8 OD X 1/8"THK | 1 | $20.63 | |
| 24 | 0923-050 | CLAMP, SPRING-6.5MM | 1 | $1.64 | |
| 25 | 1619-356 | LOOM,HIGH TEMP-3/4"X5' | 1 | $59.95 | |
| 26 | 0610-966 | HOSE, OIL LINE-2.54 X 6.3MM-25FT | 1 | $88.95 | |
| 27 | 1048-063 | LOCTITE,5699-GASKET MAKER(70ML) | 1 | $69.95 |
