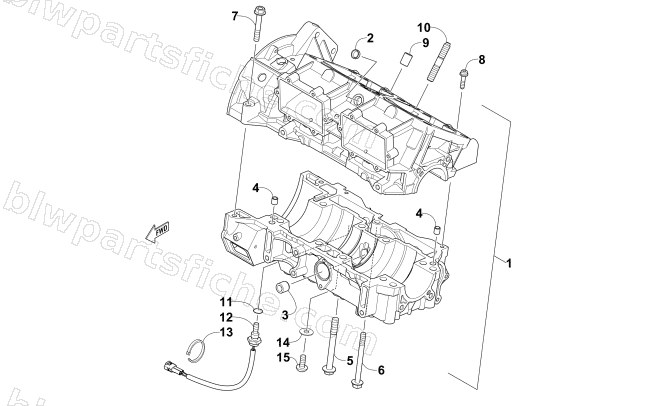

CRANKCASE ASSEMBLY
2015 XF 6000 SNO PRO ES 137 EARLY BUILD
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1901-001 | CRANKCASE - 600 - MFG ASSY | 1 | $1,431.95 | |
| 2 | 0901-013 | PLUG, CASE | 1 | $5.37 | |
| 3 | 0901-004 | BUSH,OIL PUMP INPUT SHAFT | 1 | $3.02 | |
| 4 | 0929-003 | PIN,DOWEL-9mm DIA X 10mm LG | 1 | $22.01 | |
| 5 | 0923-034 | SCREW,CAP-HFH M10X1.25X90 CL 10.9 | 1 | $3.44 | |
| 6 | 0923-022 | SCREW,CAP-HFH M8X1X88 CL8.8 | 1 | $17.87 | |
| 7 | 0923-012 | SCREW,CAP-HFH M8X1.25X50 CL10.9 | 1 | $2.06 | |
| 8 | 0923-026 | SCREW,CAP-TSRDWH M6X1X25 CL 10.9 | 1 | $2.06 | |
| 9 | 0829-002 | DOWEL, SPLIT, 13 x 18 | 1 | $2.88 | |
| 10 | 0923-013 | R/B 0923-059 | 1 | $6.95 | |
| 11 | 0923-057 | GASKET, COPPER- 12X20X1.5 | 1 | $5.37 | |
| 12 | 0902-010 | SENSOR ASSY, COOLING WATER | 1 | $78.95 | |
| 13 | 0923-040 | CABLE TIE, MULTI-LOOP | 1 | $2.47 | |
| 14 | 0830-155 | SEAL,FASTENER | 1 | $3.16 | |
| 15 | 8468-613 | SCREW,MACH-TSPNH M6X1.0X12 CL8.8 W/2343 | 1 | $1.50 |
