2015 Arctic Cat XF 6000 SNO PRO ES 137 EARLY BUILD — RECOIL STARTER
2015 XF 6000 SNO PRO ES 137 EARLY BUILD
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.

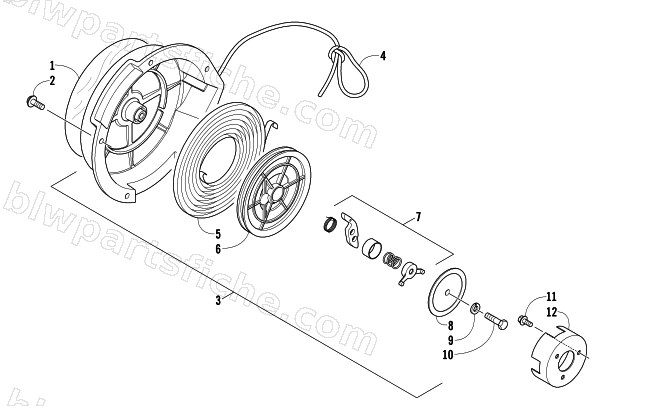

| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 4606-425 | FOIL,PROTECTIVE-RECOIL COVER-DIE CUT | 1 | $13.73 | |
| 2 | 0923-024 | SCREW,CAP-TSRDWH M6X1X16 CL 10.9 | 1 | $1.09 | |
| 3 | 0920-001 | RECOIL,STARTER-ASSY | 1 | $197.95 | |
| 4 | 3006-889 | ROPE,STARTER-C.T.L(6MM DIA)(203 CM) | 1 | $27.95 | |
| 5 | 0920-015 | SPIRAL SPRING | 1 | $60.95 | |
| 6 | 0920-016 | REEL | 1 | $34.95 | |
| 7 | 0920-018 | RATCHET SET | 1 | $43.95 | |
| 8 | 0920-017 | FRICTION PLATE | 1 | $16.49 | |
| 9 | 8051-247 | WASHER,SPR LOCK-5/16 .314X.593X.097 Z&Y | 1 | $0.40 | |
| 10 | 8408-826 | SCREW,CAP-HFH M8X1.25X25 CL8.8 W/2353 | 1 | $0.40 | |
| 11 | 0923-023 | SCREW,CAP-HFH M8X1.25X12 CL8.8 | 1 | $1.37 | |
| 12 | 0920-002 | PULLEY, STARTER | 1 | $29.95 |
