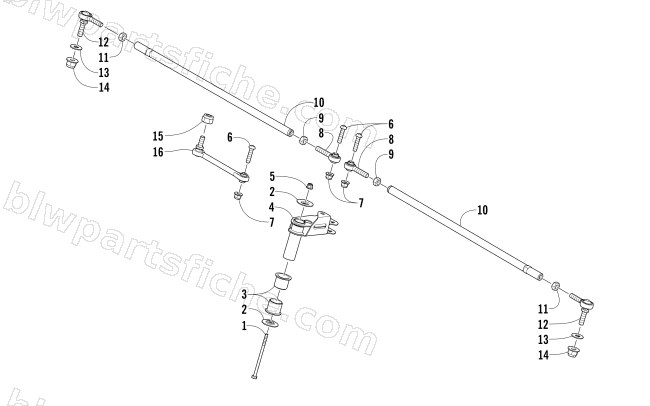

2015 Arctic Cat XF 6000 SNO PRO ES 137 EARLY BUILD — TIE ROD ASSEMBLY
2015 XF 6000 SNO PRO ES 137 EARLY BUILD
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 8402-600 | SCREW,CAP-HH M6X1X100 8.8 Z&Y | 1 | $1.50 | |
| 2 | 1623-807 | WASHER,STEPPED-BELLCRANK | 1 | $1.50 | |
| 3 | 1605-161 | BUSHING, PLASTIC (PFI1618-16) | 1 | $8.21 | |
| 4 | 1705-488 | BELLCRANK-PTD BLK | 1 | $43.95 | |
| 5 | 8427-602 | NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z&Y | 1 | $0.12 | |
| 6 | 2623-026 | SCREW,MACH-TSPH-M8X1.25X37 CL 12.9 MZ | 1 | $1.64 | |
| 7 | 8427-802 | NUT,HEX FLG-NYL LOCK M8X1.25 CL8 Z&Y | 1 | $0.54 | |
| 8 | 1605-032 | ROD END-RH M10X1.25 (8MM BORE) | 1 | $44.95 | |
| 9 | 8420-002 | NUT,HEX - M10 X 1.25 CL8 Z&Y | 1 | $0.68 | |
| 10 | 0605-477 | TUBE,TIE ROD-SPINDLE-M10X1.25X465mm | 1 | $22.01 | |
| 11 | 0423-013 | NUT,HEX M10-1.25(LH) Z&Y | 1 | $1.09 | |
| 12 | 1605-019 | ROD END-LH M10X1.25 THD W/STUD | 1 | $54.95 | |
| 13 | 1623-803 | WASHER,FLAT HARD-M10X20X2.30 Z&Y | 1 | $0.95 | |
| 14 | 8427-002 | NUT,HEX FLG-NYL LOCK M10X1.25 CL8 Z&Y | 1 | $0.95 | |
| 15 | 8422-002 | NUT,HEX-THK NYL M10X1.25 CL8 Z&Y | 1 | $0.95 | |
| 16 | 1605-072 | TIE ROD,DRGLINK-112.6mm-FRGD | 1 | $56.95 |
