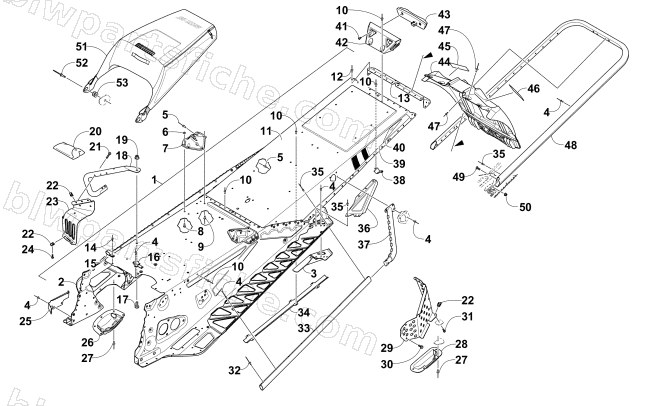

2015 Arctic Cat XF 6000 SNO PRO LTD ES 137 — TUNNEL, REAR BUMPER, AND SNOWFLAP ASSEMBLY
2015 XF 6000 SNO PRO LTD ES 137
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 0 | 1707-986 | CHASSIS,137/141" 2 STRK-ASSY PTD BLK | 1 | $2,646.95 | |
| 1 | 2707-239 | TUNNEL, XF-137-S/P ASSY-PTD BLK | 1 | $939.95 | |
| 2 | 2707-238 | TUNNEL,FRONT-XF137-S/P ASSY-PTD BLK | 1 | $718.95 | |
| 4 | 8060-706 | RIVET,BLIND-DH SS64 BLK | 1 | $0.40 | |
| 5 | 1623-206 | RIVET,3/16 HUCK-M9 | 1 | $2.06 | |
| 6 | 8422-502 | NUT, M5 X 0.8 NYLOC - YL ZN | 1 | $0.40 | |
| 7 | 1707-692 | BRKT,SPAR SUPPORT-RH-PTD BLK | 1 | $30.95 | |
| 7 | 1707-693 | BRKT,SPAR SUPPORT-LH-PTD BLK | 1 | $38.95 | |
| 8 | 8476-512 | SCREW,MACH-TSTRH M5X0.8X12 Z&Y | 1 | $1.23 | |
| 9 | 1623-257 | RIVET,3/16 HUCK-M5 | 1 | $2.06 | |
| 10 | 8060-702 | RIVET,BLIND-DH SS62 BLK | 1 | $0.26 | |
| 11 | 1707-838 | TUNNEL,REAR-141-PTD BLK | 1 | $169.95 | |
| 12 | 8060-504 | RIVET,BLIND-DH SS53 BLK | 1 | $0.26 | |
| 13 | 1707-725 | END CAP,TUNNEL-PTD BLK | 1 | $38.95 | |
| 14 | 8061-706 | RIVET,BLIND-LF SS64 BLACK | 1 | $0.95 | |
| 15 | 1623-762 | CLAMP,DOUBLE TUBE | 1 | $6.75 | |
| 16 | 0645-709 | CLIP,BATTERY CABLE | 1 | $5.09 | |
| 17 | 8476-820 | SCREW,MACH-TSTRH M8X1.25X20 Z&Y | 1 | $0.95 | |
| 18 | 1707-454 | HOOK,TOE-RH PTD BLK | 1 | $65.95 | |
| 18 | 1707-455 | HOOK,TOE-LH PTD BLK | 1 | $65.95 | |
| 19 | 8427-802 | NUT,HEX FLG-NYL LOCK M8X1.25 CL8 Z&Y | 1 | $0.54 | |
| 20 | 0744-076 | KIT,TOOL BAG-2 STROKE-ASSY | 1 | $75.95 | |
| 21 | 8468-535 | SCREW,MACH-TSPNH M5X0.8X35 CL8.8 BLK | 1 | $0.95 | |
| 22 | 1623-637 | CLIP,U-NUT (M5) | 1 | $2.47 | |
| 24 | 8470-516 | SCREW,MACH-TSPNH M5X.8X16 CL8.8 Z&Y | 1 | $0.26 | |
| 25 | 0608-705 | BRKT,ROUTING-OIL LINE | 1 | $12.35 | |
| 26 | 1607-109 | PROTECTOR,CHAIN CASE | 1 | $5.51 | |
| 27 | 8061-708 | RIVET, BLIND-LF SS66 BLACK | 1 | $0.95 | |
| 28 | 0607-351 | PROTECTOR,BRAKE DISC-BOTTOM | 1 | $12.35 | |
| 29 | 2707-044 | COVER,SHIELD-BRAKE DISC-PTD BLK | 1 | $53.95 | |
| 30 | 8408-613 | SCREW,CAP-HFH M6X1.0X12 CL8.8 Z&Y W/2353 | 1 | $1.50 | |
| 31 | 8470-520 | SCREW,MACH-TSPNH M5X.8X20 CL8.8 Z&Y | 1 | $0.40 | |
| 32 | 1623-130 | RIVET,3/16 HUCK-M4 | 1 | $1.64 | |
| 33 | 1707-697 | EDGE,RUNNING BOARD-PTD BLK | 1 | $54.95 | |
| 34 | 0630-309 | PROTECTOR,TAILLIGHT HARNESS-141" | 1 | $16.49 | |
| 35 | 1623-241 | RIVET,3/16 HUCK-M6 | 1 | $1.92 | |
| 36 | 1707-698 | GUSSET,RUNNING BOARD-RH-PTD BLK | 1 | $27.95 | |
| 36 | 1707-699 | GUSSET,RUNNING BOARD-LH-PTD BLK | 1 | $27.95 | |
| 37 | 1707-700 | GUSSET,TUNNEL-RH-PTD BLK | 1 | $30.95 | |
| 37 | 1707-701 | GUSSET,TUNNEL-LH-PTD BLK | 1 | $29.95 | |
| 38 | 0630-292 | PROTECTOR,TAILLIGHT HARNESS-26.5mm | 1 | $15.11 | |
| 39 | 1621-638 | DECAL,TUNNEL-137/141"-ORN-RH (LTD) | 1 | $15.11 | |
| 39 | 1621-639 | DECAL,TUNNEL-137/141"-ORN-LH (LTD) | 1 | $15.11 | |
| 39 | 1621-686 | DECAL,TUNNEL-137/141"-GRN-RH (LTD) | 1 | $15.11 | |
| 39 | 1621-687 | DECAL,TUNNEL-137/141"-GRN-LH (LTD) | 1 | $15.11 | |
| 40 | 0621-990 | DECAL,REFLECTOR-RED | 1 | $15.11 | |
| 41 | 8470-510 | SCREW,MACH-TSPNH M5X.8X10 CL8.8 Z&Y | 1 | $0.68 | |
| 42 | 0730-227 | HOUSING,TAILLIGHT-PTD BLK | 1 | $38.95 | |
| 43 | 0609-898 | TAILLIGHT,RED | 1 | $66.95 | |
| 44 | 6606-394 | FLAP,SNOW-MTN-BLK | 1 | $106.95 | |
| 45 | 5611-852 | DECAL,WARNING-TOWING/TRACK-FRENCH | 1 | $2.47 | |
| 46 | 5611-853 | DECAL,WARNING-TOWING/TRACK-ENGLISH | 1 | $2.47 | |
| 48 | 2707-584 | BUMPER,REAR-137"-PTD-BLK | 1 | $101.95 | |
| 49 | 8476-620 | SCREW,MACH-TSTRH M6X1.0X20 Z&Y | 1 | $0.40 | |
| 50 | 8427-602 | NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z&Y | 1 | $0.12 | |
| 51 | 6606-600 | SADDLEBAG,REAR | 1 | $234.95 | |
| 52 | 8060-630 | RIVET,BLIND-DH AA68 BLK | 1 | $1.23 | |
| 53 | 1623-940 | GROMMET,SEAT BAG | 1 | $2.06 |
