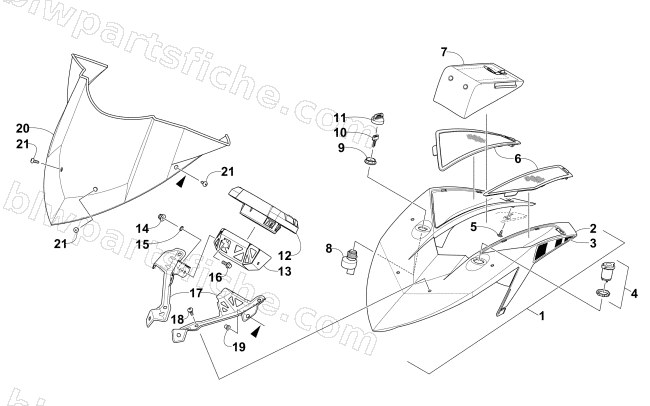

2015 Arctic Cat XF 6000 SNO PRO LTD ES 137 — WINDSHIELD AND INSTRUMENTS ASSEMBLIES
2015 XF 6000 SNO PRO LTD ES 137
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 4718-259 | COWL,HEADLIGHT-WHT-W/ORN DECAL(2 STRK) | 1 | $175.95 | |
| 1 | 4718-323 | COWL,HEADLIGHT-WHT-W/GRN DECAL(2 STRK) | 1 | $175.95 | |
| 2 | 6606-316 | COWL,HEADLIGHT-WHT | 1 | $145.95 | |
| 3 | 1621-598 | DECAL,COWL-ORN-RH (LTD) | 1 | $17.87 | |
| 3 | 1621-599 | DECAL,COWL-ORN-LH (LTD) | 1 | $17.87 | |
| 3 | 1621-646 | DECAL,COWL-GRN-RH (LTD) | 1 | $20.63 | |
| 3 | 1621-647 | DECAL,COWL-GRN-LH (LTD) | 1 | $20.63 | |
| 4 | 0641-897 | OUTLET, ACCESSORY - 12V DC | 1 | $23.39 | |
| 5 | 1623-129 | R/B 2623-166 | 1 | $0.35 | |
| 6 | 0608-736 | SCREEN,INTAKE-INJ MOLD-RH | 1 | $19.25 | |
| 6 | 0608-737 | SCREEN,INTAKE-INJ MOLD-LH | 1 | $19.25 | |
| 7 | 6606-566 | BAG,GOGGLE | 1 | $77.95 | |
| 8 | 0609-910 | SWITCH,OPEN IGNITION-2012 | 1 | $68.95 | |
| 9 | 0430-050 | NUT,FLANGE-KEYSWITCH | 1 | $1.92 | |
| 10 | 0430-042 | KEY,IGNITION SERIES-Y (LH BLANK) | 1 | $5.92 | |
| 10 | 0430-043 | KEY,IGNITION SERIES-Z (RH BLANK) | 1 | $11.95 | |
| 11 | 0430-054 | COVER,KEY | 1 | $15.11 | |
| 12 | 0720-031 | R/B 0720-045 | 1 | $667.95 | |
| 13 | 5706-959 | BRKT,GAUGE-CENTER-PTD WHT | 1 | $60.95 | |
| 14 | 8427-602 | NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z&Y | 1 | $0.12 | |
| 15 | 8053-212 | WASHER,LOCK-1/4 EXT TOOTH TYP A Z&Y | 1 | $0.12 | |
| 16 | 8410-616 | SCREW,CAP-HFH M6X1.0X16 CL8.8 RIE BLK | 1 | $1.37 | |
| 17 | 5706-652 | BRKT,GAUGE-RH-PTD WHT | 1 | $26.95 | |
| 17 | 5706-653 | BRKT,GAUGE-LH-PTD WHT | 1 | $26.95 | |
| 18 | 0423-355 | SCREW, SHOULDER-M6-1.0 X 18-BLK | 1 | $0.95 | |
| 19 | 1623-764 | NUT EXPANSION-M5-0.8 | 1 | $5.45 | |
| 20 | 6606-880 | WINDSHIELD,MID-WHITE | 1 | $150.95 | |
| 21 | 8477-516 | SCREW,MACH-TSTRH M5X0.8X16 Z&BLK | 1 | $0.68 |
