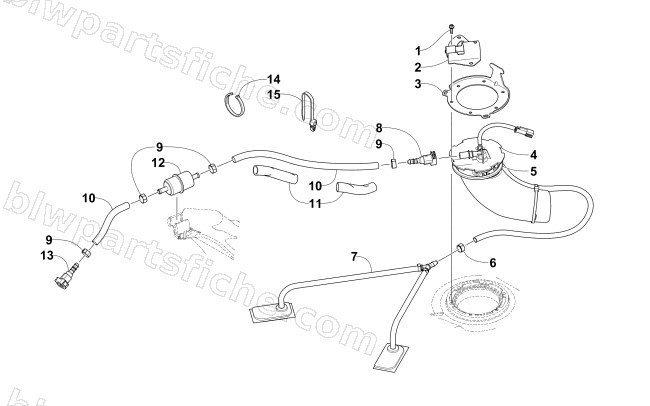

2015 Arctic Cat XF 7000 HIGH COUNTRY 141 SNO PRO — FUEL PUMP ASSEMBLY
2015 XF 7000 HIGH COUNTRY 141 SNO PRO
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0423-898 | SCREW,TSPH-THRD FORM M5X0.8X20MM SEMS | 1 | $0.54 | |
| 2 | 2670-467 | PROTECTOR,FUEL PUMP | 1 | $102.95 | |
| 3 | 2670-395 | MOUNT,FUEL PUMP | 1 | $49.95 | |
| 4 | 2670-361 | PUMP,FUEL | 1 | $536.95 | |
| 5 | 0470-838 | SEAL,FUEL-PUMP | 1 | $3.16 | |
| 6 | 1623-655 | CLAMP,HOSE-CRIMP-11.3 | 1 | $3.30 | |
| 7 | 2670-278 | PICKUP,FUEL-ASSY | 1 | $208.95 | |
| 8 | 2670-141 | FITTING,QUICK CONNECTOR | 1 | $12.35 | |
| 9 | 0610-563 | CLAMP, HOSE-13.2MM-15.7MM | 1 | $1.78 | |
| 10 | 0610-971 | HOSE,FUEL-IN TANK-10 FT | 1 | $267.95 | |
| 11 | 2670-441 | TUBE,HEAT SHRINK-BLK-19.1MMX100MM | 1 | $16.49 | |
| 12 | 1670-825 | FILTER,FUEL | 1 | $45.95 | |
| 13 | 2670-341 | FITTING,QUICK CONNECT-STRAIGHT | 1 | $29.95 | |
| 14 | 0123-788 | TIE,CABLE-8.5/7.5/7.4 | 1 | $0.12 | |
| 14 | 0623-751 | CABLE TIE,REUSABLE-('98 440 PRO) | 1 | $0.95 | |
| 15 | 0623-677 | CABLE TIE,PUSH MOUNT-X MAS CLIP | 1 | $1.09 |
