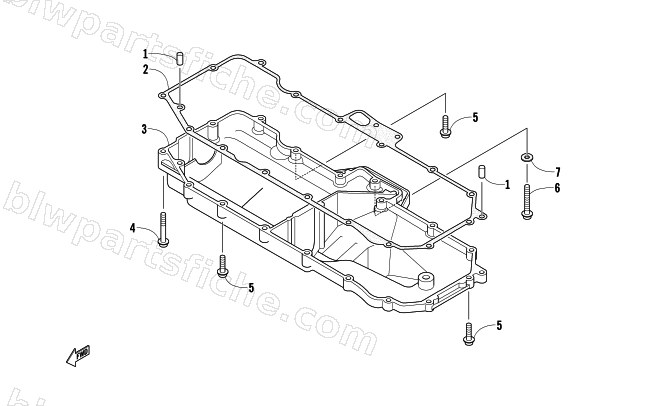

2015 Arctic Cat XF 7000 SNO PRO 137 — OIL PAN ASSEMBLY
2015 XF 7000 SNO PRO 137
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3020-293 | PIN, DOWEL | 1 | $6.75 | |
| 2 | 3020-294 | GASKET,OIL PAN | 1 | $24.77 | |
| 3 | 3020-295 | PAN,OIL | 1 | $251.95 | |
| 4 | 3020-296 | SCREW,CAP-HSH | 1 | $13.73 | |
| 5 | 3020-297 | SCREW,CAP-HSH | 1 | $13.73 | |
| 6 | 3020-298 | SCREW,CAP-HSH | 1 | $12.35 | |
| 7 | 3020-299 | GASKET | 1 | $3.02 |
