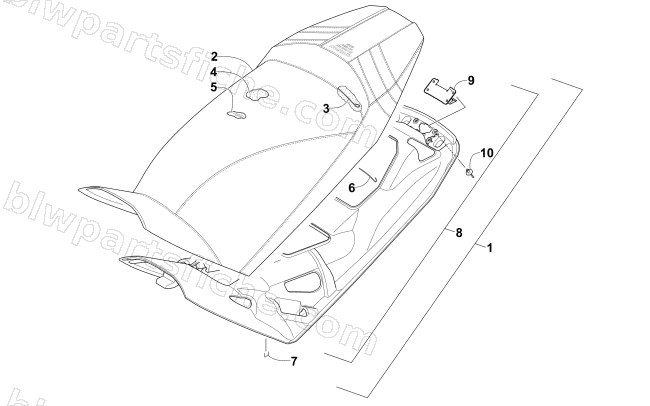

SEAT ASSEMBLY
2015 XF 7000 SNO PRO LTD 137
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 5706-840 | SEAT,ASSY-ZR/XF HEATED LTD GRN | 1 | $911.95 | |
| 1 | 5706-839 | SEAT,ASSY-ZR/XF HEATED LTD ORN | 1 | $911.95 | |
| 2 | 5706-835 | COVER,SEAT-ZR/XF LTD HEATED GRN (214) | 1 | $382.95 | |
| 2 | 5706-834 | COVER,SEAT-ZR/XF LTD HEATED ORN (214) | 1 | $382.95 | |
| 3 | 3606-369 | WIRE,SEAT-BENT | 1 | $4.26 | |
| 4 | 0717-214 | FOAM,SEAT-(80-85 ILD).48R@4.7 | 1 | $136.95 | |
| 5 | 0609-913 | PAD,SEAT-HEATER | 1 | $201.95 | |
| 6 | 6606-461 | WIRE,SEAT-3.048 DIA X 279.4 mm | 1 | $1.92 | |
| 7 | 0624-528 | STAPLE,5/16L X 1/2W-20GA SS/5000 PAK-SEA | 1 | $161.95 | |
| 8 | 5706-770 | BASE,SEAT-ASSY | 1 | $54.95 | |
| 9 | 6606-833 | HOOK,SEAT LATCH | 1 | $17.87 | |
| 10 | 8061-708 | RIVET, BLIND-LF SS66 BLACK | 1 | $0.95 |
