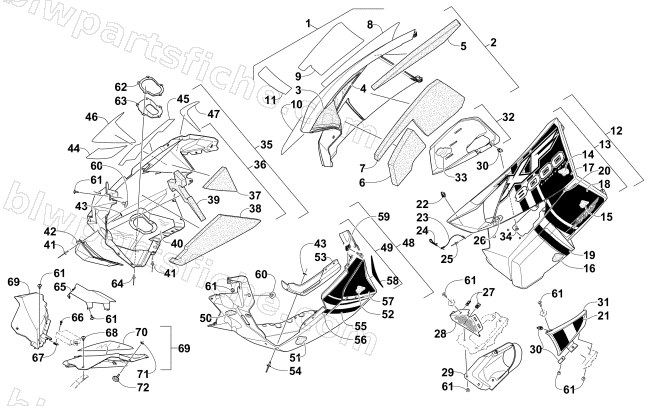

2015 Arctic Cat XF 8000 SNO PRO LTD 137 — SKID PLATE AND SIDE PANEL ASSEMBLY
2015 XF 8000 SNO PRO LTD 137
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 4718-314 | PANEL,SIDE-RH-W/DECALS (XF 8 LTD GRN) | 1 | $359.95 | |
| 1 | 4718-308 | PANEL,SIDE-RH-W/DECALS (XF 8 LTD ORN) | 1 | $359.95 | |
| 2 | 3718-438 | PANEL,SIDE-RH WHT-W/FOAM-2 STRK | 1 | $164.95 | |
| 3 | 0617-626 | FOAM,UPPER SIDE PANEL-FRT-RH | 1 | $4.26 | |
| 4 | 6606-414 | FOIL,PROTECTIVE-MIDDLE SIDE PANEL-RH | 1 | $1.92 | |
| 5 | 0617-628 | FOAM,UPPER SIDE PANEL-REAR-RH | 1 | $37.95 | |
| 6 | 0617-632 | FOAM,LWR SIDE PANEL-FRT-RH | 1 | $22.01 | |
| 7 | 0617-634 | FOAM,LWR SIDE PANEL-REAR-RH | 1 | $39.95 | |
| 8 | 1621-662 | DECAL,SIDE PANEL-UPR-GRN-RH (XF8000 LTD) | 1 | $110.95 | |
| 8 | 1621-614 | DECAL,SIDE PANEL-UPR-ORN-RH (XF8000 LTD) | 1 | $53.95 | |
| 9 | 1621-672 | DECAL,SIDE PANEL-LWR-GRN-RH (LTD) | 1 | $30.95 | |
| 9 | 1621-624 | DECAL,SIDE PANEL-LWR-ORN-RH (LTD) | 1 | $30.95 | |
| 10 | 1621-670 | DECAL,SIDE PANEL-MID-GRN-RH (LTD) | 1 | $6.75 | |
| 10 | 1621-622 | DECAL,SIDE PANEL-MID-ORN-RH (LTD) | 1 | $5.92 | |
| 11 | 1621-674 | DECAL,SIDE PANEL-FWD-GRN-RH (LTD) | 1 | $6.75 | |
| 11 | 1621-626 | DECAL,SIDE PANEL-FWD-ORN-RH (LTD) | 1 | $15.11 | |
| 12 | 4718-315 | PANEL,SIDE-LH-W/DECALS (XF 8 LTD GRN) | 1 | $359.95 | |
| 12 | 4718-309 | PANEL,SIDE-LH-W/DECALS (XF 8 LTD ORN) | 1 | $359.95 | |
| 13 | 4718-555 | PANEL,SIDE-LH-W/FOAM-WHT | 1 | $164.95 | |
| 14 | 0617-629 | FOAM,UPPER SIDE PANEL-REAR-LH | 1 | $16.49 | |
| 15 | 0617-635 | FOAM,LWR SIDE PANEL-REAR-LH | 1 | $12.35 | |
| 16 | 0617-681 | FOAM,LWR SIDE PANEL-FRT-LH | 1 | $5.65 | |
| 17 | 1621-663 | DECAL,SIDE PANEL-UPR-GRN-LH (XF8000 LTD) | 1 | $110.95 | |
| 17 | 1621-615 | DECAL,SIDE PANEL-UPR-ORN-LH (XF8000 LTD) | 1 | $53.95 | |
| 18 | 1621-673 | DECAL,SIDE PANEL-LWR-GRN-LH (LTD) | 1 | $30.95 | |
| 18 | 1621-625 | DECAL,SIDE PANEL-LWR-ORN-LH (LTD) | 1 | $30.95 | |
| 19 | 1621-675 | DECAL,SIDE PANEL-FWD-GRN-LH (LTD) | 1 | $6.75 | |
| 19 | 1621-627 | DECAL,SIDE PANEL-FWD-ORN-LH (LTD) | 1 | $15.11 | |
| 20 | 2621-291 | DECAL,SIDE-PANEL-MID-REAR-LH (LTD GRN) | 1 | $12.35 | |
| 20 | 2621-295 | DECAL,SIDE-PANEL-MID-REAR-LH (LTD ORN) | 1 | $9.59 | |
| 21 | 2621-289 | DECAL,SIDE-PANEL-MID-VENT-LH (LTD GRN) | 1 | $12.35 | |
| 21 | 2621-293 | DECAL,SIDE-PANEL-MID-VENT-LH (LTD ORN) | 1 | $9.59 | |
| 22 | 1623-637 | CLIP,U-NUT (M5) | 1 | $2.47 | |
| 23 | 0607-447 | CABLE,5"-HAIRPIN | 1 | $5.37 | |
| 24 | 0605-283 | HAIRPIN,COTTER | 1 | $1.23 | |
| 25 | 8060-486 | RIVET, BLIND-DH SS54 ZINC | 1 | $0.40 | |
| 26 | 8050-127 | WASHER,FLAT- #8 X .375 X .049 Z&Y | 1 | $1.37 | |
| 27 | 1623-052 | NUT,U | 1 | $0.95 | |
| 28 | 6606-925 | SCREEN,INTAKE | 1 | $34.95 | |
| 29 | 2602-794 | DUCT,INTAKE-INNER | 1 | $27.95 | |
| 30 | 1623-030 | NUT,SPEED-#10B U TYPE | 1 | $0.95 | |
| 31 | 2602-803 | DUCT,INTAKE-OUTER-WHT | 1 | $19.25 | |
| 32 | 1702-369 | DUCT,AIR-CLUTCH W/FOIL | 1 | $39.95 | |
| 33 | 6606-694 | FOIL,CLUTCH DUCT-2 STROKE | 1 | $3.71 | |
| 34 | 0623-797 | SCREW,SELF TAP-TSTH 10-12X1/2 WO/GP | 1 | $0.45 | |
| 35 | 4718-206 | PLATE,SKID-RH-WHT/GRN W/DECALS (LTD) | 1 | $374.95 | |
| 35 | 4718-188 | PLATE,SKID-RH-WHT/ORN W/DECALS (LTD) | 1 | $374.95 | |
| 36 | 4718-532 | PLATE,SKID-RH WHT-W/FOAM (8000) | 1 | $217.95 | |
| 37 | 0617-640 | FOAM,SKID PLATE-REAR-RH | 1 | $3.57 | |
| 38 | 0617-638 | FOAM,SKID PLATE-MIDDLE-RH | 1 | $43.95 | |
| 39 | 0617-636 | FOAM,SKID PLATE-FRT-RH | 1 | $37.95 | |
| 40 | 2612-850 | R/B 3612-325 | 1 | $19.95 | |
| 41 | 8061-708 | RIVET, BLIND-LF SS66 BLACK | 1 | $0.95 | |
| 42 | 2612-754 | SHIELD,RESONATOR-SKID PLATE | 1 | $29.95 | |
| 43 | 0123-802 | WASHER,FLAT .194X.50X.048-Z&Y | 1 | $0.12 | |
| 44 | 1621-678 | DECAL,SKID PLATE-FWD-GRN-RH (LTD) | 1 | $22.01 | |
| 44 | 1621-630 | DECAL,SKID PLATE-FWD-ORN-RH (LTD) | 1 | $20.63 | |
| 45 | 1621-676 | DECAL,SKID PLATE-UPPER-GRN-RH (LTD) | 1 | $6.75 | |
| 45 | 1621-628 | DECAL,SKID PLATE-UPPER-ORN-RH (LTD) | 1 | $6.75 | |
| 46 | 1621-680 | DECAL,SKID PLATE-MID-RH (LTD) | 1 | $16.49 | |
| 47 | 1621-682 | DECAL,SKID PLATE-REAR-RH (LTD) | 1 | $13.73 | |
| 48 | 4718-207 | PLATE,SKID-LH-WHT/GRN W/DECALS (LTD) | 1 | $291.95 | |
| 48 | 4718-189 | PLATE,SKID-LH-WHT/ORN W/DECALS (LTD) | 1 | $152.95 | |
| 49 | 4718-533 | PLATE,SKID-LH-W/FOAM-WHT | 1 | $126.95 | |
| 50 | 0617-637 | FOAM,SKID PLATE-FRT-LH | 1 | $16.49 | |
| 51 | 0617-639 | FOAM,SKID PLATE-MIDDLE-LH | 1 | $16.49 | |
| 52 | 0617-641 | FOAM,SKID PLATE-REAR-LH | 1 | $3.99 | |
| 53 | 6606-613 | RETAINER,TAB-SIDE PANEL | 1 | $12.35 | |
| 54 | 8061-688 | RIVET,BLIND-LF SS66 ZINC | 1 | $0.95 | |
| 55 | 1621-679 | DECAL,SKID PLATE-FWD-GRN-LH (LTD) | 1 | $22.01 | |
| 55 | 1621-631 | DECAL,SKID PLATE-FWD-ORN-LH (LTD) | 1 | $19.25 | |
| 56 | 1621-677 | DECAL,SKID PLATE-UPPER-GRN-LH (LTD) | 1 | $6.75 | |
| 56 | 1621-629 | DECAL,SKID PLATE-UPPER-ORN-LH (LTD) | 1 | $6.75 | |
| 57 | 1621-681 | DECAL,SKID PLATE-MID-LH (LTD) | 1 | $5.37 | |
| 58 | 1621-683 | DECAL,SKID PLATE-REAR-LH (LTD) | 1 | $13.73 | |
| 59 | 2623-005 | CLIP,RECEPTACLE-1/4 TURN STUD | 1 | $2.61 | |
| 60 | 6606-592 | PIN,RETAINER-BODY PLASTIC | 1 | $3.57 | |
| 61 | 1623-129 | R/B 2623-166 | 1 | $0.35 | |
| 62 | 2612-796 | PLATE,EXHAUST OUTLET | 1 | $25.95 | |
| 63 | 2612-795 | SEAL,EXHAUT OUTLET-2 STRK | 1 | $17.87 | |
| 64 | 8061-710 | RIVET,BLIND-LF SS68 BLACK | 1 | $1.09 | |
| 65 | 6606-295 | SHIELD,HEAT-ECU | 1 | $24.95 | |
| 66 | 8408-620 | SCREW,CAP-HFH M6X1.0X20 CL8.8 Z&Y | 1 | $1.37 | |
| 67 | 0423-031 | NUT,SPEED M6 X 1.0 U-TYPE | 1 | $0.95 | |
| 68 | 0623-784 | R/B 2623-163 | 1 | $0.35 | |
| 69 | 6606-342 | PANEL,FILLER-RH-BLK | 1 | $19.25 | |
| 69 | 3718-303 | PANEL,FILLER W/FOIL-LH | 1 | $19.25 | |
| 70 | 6606-405 | FOIL,PROTECTIVE-FILLER PANEL-LH | 1 | $27.95 | |
| 71 | 2623-001 | RETAINER,PUSHNUT-3/16" STUD | 1 | $0.40 | |
| 72 | 1623-999 | SCREW,1" RND KNOB-M5X0.8X20mm LG | 1 | $4.95 |
