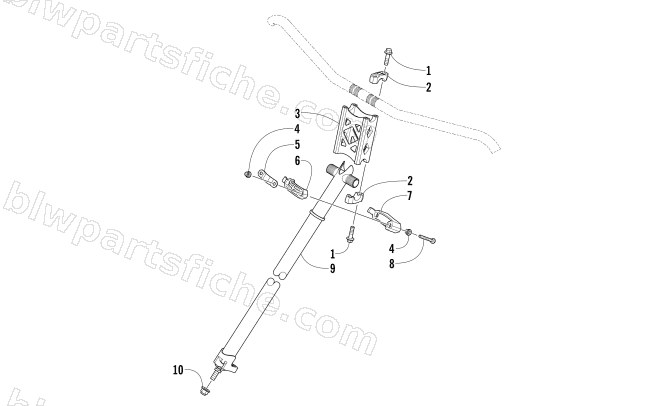

2015 Arctic Cat XF 8000 SNO PRO LTD 137 — STEERING POST ASSEMBLY
2015 XF 8000 SNO PRO LTD 137
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 8408-830 | SCREW,CAP-HFH M8X1.25X30 CL8.8 Z&Y | 1 | $0.95 | |
| 2 | 1705-461 | CAP,STEERING-PTD BLK | 1 | $15.11 | |
| 3 | 1705-423 | RISER,5.5 HANDLEBAR-PTD BLK | 1 | $74.95 | |
| 4 | 8427-602 | NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z&Y | 1 | $0.12 | |
| 5 | 0605-998 | PLATE,RETAINING-STEERING POST | 1 | $2.61 | |
| 6 | 1605-043 | BLOCK,MTG-STEERING POST-UPPER | 1 | $3.57 | |
| 7 | 1605-044 | BLOCK,MTG-STEERING POST-LOWER | 1 | $3.57 | |
| 8 | 2623-079 | SCREW,MACH-TSPNH M6X1.0X60 CL8.8 Z&Y | 1 | $1.78 | |
| 9 | 1705-309 | R/B 1705-522 | 1 | $122.95 | |
| 10 | 2623-076 | R/B 2623-202 | 1 | $1.39 |
