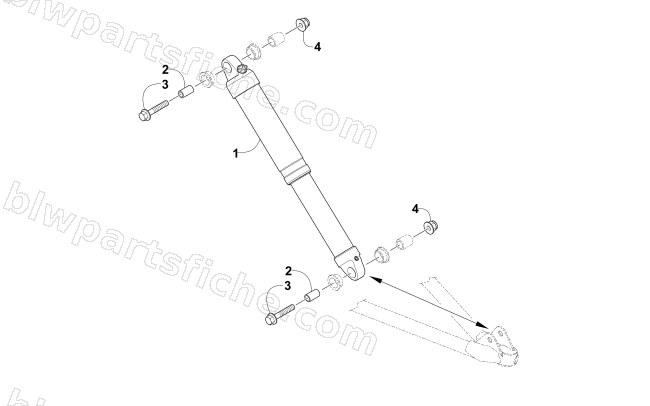

FRONT SHOCK ABSORBER ASSEMBLY
2015 XF 9000 CROSS-TOUR 141
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3703-342 | SHOCK,SKI-FLOAT 3-18.68" 42" | 1 | $733.95 | |
| 1 | 3703-469 | SHOCK, SKI 466.8 | 1 | $137.95 | |
| 2 | 3604-109 | SLEEVE,SHOCK EYELET-10mm ID | 1 | $4.40 | |
| 2 | 3604-200 | RETAINER,SPRING-POWDER METAL | 1 | $6.06 | |
| 3 | 8408-050 | SCREW,CAP-HFH M10X1.25X50 CL8.8 Z&Y | 1 | $2.75 | |
| 4 | 8427-002 | NUT,HEX FLG-NYL LOCK M10X1.25 CL8 Z&Y | 1 | $0.95 | |
| 6 | 2703-861 | SPRING,SHOCK-95 LB X 13"-PTD WHT | 1 | $74.95 |
