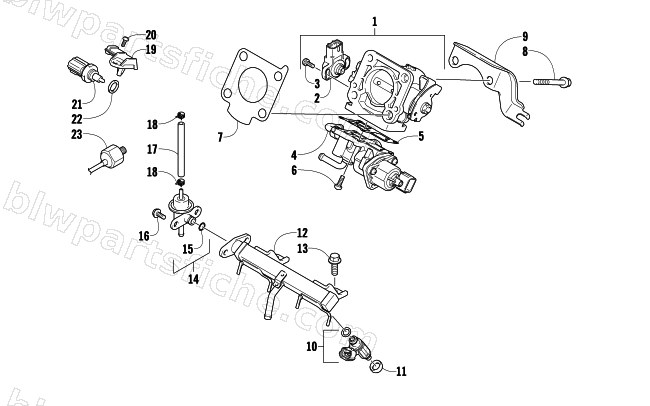

THROTTLE BODY ASSEMBLY
2015 XF 9000 LXR 137
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3007-826 | BODY ASSY,THROTTLE | 1 | $2,238.95 | |
| 2 | 3006-651 | SENSOR,THROTTLE-'03 4-STROKE | 1 | $567.95 | |
| 3 | 3006-652 | SCREW,TPS SENSOR | 1 | $5.65 | |
| 4 | 3007-827 | VALVE,IDLE SPEED CONTROL | 1 | $747.95 | |
| 5 | 3006-215 | GASKET,ISC VALVE '02 660 L/C | 1 | $30.95 | |
| 6 | 3007-828 | SCREW,ISC VALVE | 1 | $3.85 | |
| 7 | 3006-560 | GASKET,THROTTLE BODY-660 L/C | 1 | $19.25 | |
| 8 | 3007-238 | BOLT,EGR VALVE | 1 | $4.95 | |
| 9 | 3007-829 | GUIDE,THROTTLE CABLE | 1 | $58.95 | |
| 10 | 3007-830 | INJECTOR ASSY,FUEL | 1 | $432.95 | |
| 11 | 3006-126 | CUSHION,8.7X16.3X5.5 '02 660 L/C | 1 | $49.95 | |
| 12 | 3007-831 | PIPE,DELIVERY | 1 | $393.95 | |
| 13 | 3007-432 | BOLT | 1 | $3.44 | |
| 14 | 3006-880 | REGULATOR ASS'Y,FUEL PRESSURE | 1 | $453.95 | |
| 15 | 3006-881 | RING (660 TURBO) | 1 | $22.01 | |
| 16 | 3007-457 | BOLT | 1 | $3.16 | |
| 17 | 3006-851 | HOSE,3.5X7.5X601 | 1 | $24.77 | |
| 18 | 3008-037 | CLAMP,HOSE,M6 | 1 | $3.85 | |
| 19 | 3007-832 | SENSOR ASSY,BOOST | 1 | $556.95 | |
| 20 | 3007-833 | SCREW,PRESSURE SENSOR | 1 | $1.92 | |
| 21 | 3007-060 | SENSOR,WATER TEMP | 1 | $216.95 | |
| 22 | 3530-047 | GASKET,WATER TEMP SENSOR | 1 | $4.40 | |
| 23 | 3006-886 | SENSOR ASS'Y,KNOCK | 1 | $357.95 |
