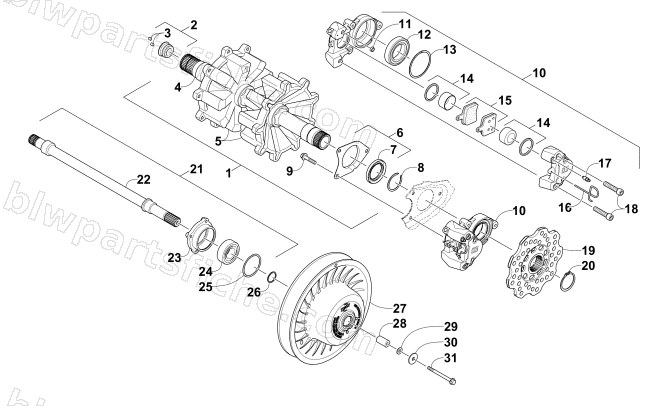

2015 Arctic Cat ZR 4000 RR — DRIVE TRAIN SHAFTS AND BRAKE ASSEMBLIES
2015 ZR 4000 RR
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0728-224 | R/B 0728-235 | 1 | $450.95 | |
| 2 | 1702-072 | PLUG,DRIVE SHAFT-W/MAGNET | 1 | $16.49 | |
| 4 | 2602-740 | SHAFT,DRIVE-HEX-45MM BOTTOM BRAKE | 1 | $259.95 | |
| 5 | 2602-771 | SPROCKET,DRIVE-9T-2.86P-MACH | 1 | $69.95 | |
| 6 | 1702-206 | R/B 1702-502 | 1 | $24.95 | |
| 8 | 2602-233 | SNAP RING(CLR-175) | 1 | $2.19 | |
| 9 | 8408-831 | SCREW,CAP-HFH M8X1.25X30 CL8.8 W/2353 | 1 | $0.95 | |
| 10 | 2602-486 | CALIPER,BRAKE-FIXED/DUAL PISTON | 1 | $425.95 | |
| 11 | 2602-411 | SEAL,CROSSOVER | 1 | $3.44 | |
| 12 | 2602-198 | BEARING (6009-2RSFP-C3) | 1 | $24.77 | |
| 13 | 2602-280 | RING,SNAP(MKA-75) | 1 | $3.57 | |
| 14 | 2602-410 | KIT,PISTONS/SEALS | 1 | $75.95 | |
| 15 | 1702-245 | PAD SET,BRAKE | 1 | $114.95 | |
| 17 | 2602-408 | FITTING,BLEEDER | 1 | $5.65 | |
| 18 | 2602-412 | BOLT,BRAKE CALIPER | 1 | $4.68 | |
| 19 | 2602-720 | DISK,BRAKE-FORGED-34T SPLINED-MACH | 1 | $240.95 | |
| 20 | 2602-629 | SNAP RING-(MSH-43) | 1 | $2.61 | |
| 21 | 1702-409 | SHAFT,DRIVEN-W/BEARING-ASSY (XC) | 1 | $224.95 | |
| 22 | 2602-884 | SHAFT,DRIVEN-RACE | 1 | $131.95 | |
| 23 | 2602-422 | HUB,BEARING HOUSING-MACH | 1 | $34.95 | |
| 24 | 2602-247 | BEARING,30 X 62 X 20 - 2206 -2RS | 1 | $20.63 | |
| 25 | 2602-236 | SNAP RING(MKA-62) | 1 | $3.16 | |
| 26 | 0616-032 | O-RING-WINDSHIELD (1 I.D.) | 1 | $1.78 | |
| 27 | 0726-373 | CLUTCH,DRIVEN-180/260,44/42-ASSY | 1 | $749.95 | |
| 28 | 0648-819 | SHAFT,STUB-DRIVEN | 1 | $34.95 | |
| 29 | 0123-053 | WASHER, FLAT 5/16 X 3/4 | 1 | $1.64 | |
| 31 | 8408-880 | SCREW,CAP-HFH M8X1.25X80 CL8.8 Z&Y | 1 | $1.09 |
