2015 Arctic Cat ZR 4000 RR — REAR SUSPENSION FRONT ARM SHOCK ABSORBER
2015 ZR 4000 RR
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.

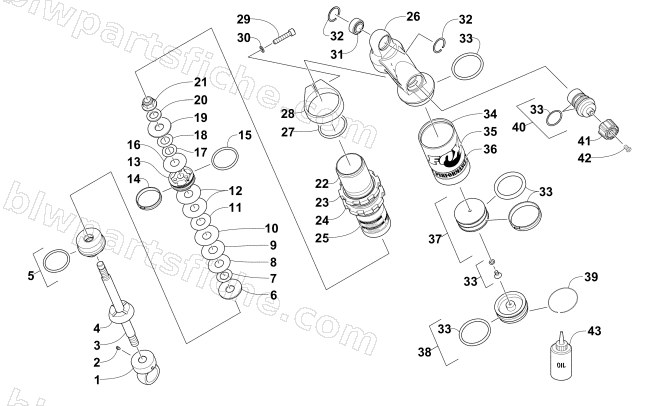

| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 0 | 2704-635 | SHOCK,FRT ARM-CROSS COUNTRY | 1 | $640.95 | |
| 1 | 3604-842 | EYELET, SHOCK | 1 | $221.95 | |
| 2 | 1603-940 | SCREW-SET,8-32X.250 | 1 | $1.95 | |
| 3 | 3604-895 | SHAFT,SHOCK-.498 X 6.96" | 1 | $98.95 | |
| 4 | 3604-530 | BUMPER,SHOCK-.450 ID X .400 TLG | 1 | $49.95 | |
| 5 | 2604-413 | BEARING,ENDCAP.498" X 1.21"-ASSY | 1 | $151.95 | |
| 6 | 0603-540 | WASHER, TOP OUT-1.125OD X .378 ID X.093 | 1 | $16.49 | |
| 7 | 0603-731 | VALVE, .700X.004(3/8ID) | 1 | $13.95 | |
| 8 | 0603-893 | VALVE, SHOCK 1.00X.004(040-04-100) | 1 | $7.95 | |
| 9 | 0603-892 | VALVE,1.100X.004 (040-04-110) | 1 | $6.95 | |
| 10 | 0603-350 | VALVE,1.300X.010(3/8ID) | 1 | $17.95 | |
| 11 | 0603-895 | VALVE, SHOCK .800X.004 (3/8 ID) | 1 | $7.95 | |
| 12 | 0603-349 | VALVE,1.300X.008(3/8ID) | 1 | $13.95 | |
| 13 | 2603-897 | PISTON,HIGH FLOW-.035 ORIFICE | 1 | $72.95 | |
| 14 | 2603-994 | BEARING,EXTERNAL GLIDE RING-1.459" BORE | 1 | $26.95 | |
| 15 | 2604-214 | O-RING-25MM ID X 1.5 MM CS | 1 | $4.95 | |
| 16 | 0603-343 | VALVE,1.100X.008(3/8ID) | 1 | $6.95 | |
| 17 | 3604-171 | VALVE, .600X.004(3/8ID) | 1 | $12.95 | |
| 18 | 0603-332 | VALVE, .700X.010(3/8ID) | 1 | $12.95 | |
| 19 | 3604-170 | PLATE,TOP-OUT-1.125OD X .378ID X .080 | 1 | $21.95 | |
| 20 | 0603-389 | WASHER,BACKUP | 1 | $12.95 | |
| 21 | 0603-301 | NUT,CAP-FOX SHOCK | 1 | $6.95 | |
| 22 | 3604-729 | BODY,INTERNAL GROOVES-1.459"BOREX5.5"TLG | 1 | $184.95 | |
| 23 | 2604-841 | RING,PRELOAD LOCK-2.40 OD X .300 TLG | 1 | $50.95 | |
| 24 | 2604-840 | RING,PRELOAD-2.40 OD X .600 TLG | 1 | $50.95 | |
| 25 | 3603-418 | DECAL BAND [4.4 X 1.5] WARNING SYMBOLS | 1 | $12.35 | |
| 26 | 3604-522 | BODY,CAP-PIGGYBACK -102.5 DEG-ASSY | 1 | $408.95 | |
| 27 | 0603-438 | O-RING -END CAP | 1 | $4.95 | |
| 28 | 3604-532 | CLAMP,BODY CAP-1.90 ID X M5 | 1 | $81.95 | |
| 29 | 3604-526 | BEARING,SPHERICAL-.875 OD X .375 W | 1 | $89.95 | |
| 30 | 3604-527 | RING,RETAINING-SPIRAL-.021"X.926" OD | 1 | $13.73 | |
| 31 | 4604-017 | KIT,REBUILD-SEAL/BEARING | 1 | $93.95 | |
| 32 | 3603-488 | RESERVOIR, 1.834 BORE X 3.50TLG BLACK AN | 1 | $90.95 | |
| 33 | 3603-378 | DECAL,RESERVOIR-PERFORMANCE SERIES | 1 | $17.87 | |
| 34 | 3603-365 | DECAL,BAND-PERFORMANCE SERIES | 1 | $17.87 | |
| 35 | 3604-422 | BODY,1.459 BORE-5.590 TLG | 1 | $169.95 | |
| 36 | 3603-392 | END CAP,RESERVOIR-ASSY 1.834 BORE | 1 | $38.95 | |
| 37 | 3603-379 | RING,RETAINING-SPIRAL-1.117 OD | 1 | $2.61 | |
| 38 | 3603-466 | DAMPING ADJUST ASSY - LSC - HARD | 1 | $101.95 | |
| 39 | 3603-385 | KNOB,DAMPING ADJUST-LOW SPEED | 1 | $3.99 | |
| 40 | 3603-377 | SCREW,#4-40 X 1/4 SS | 1 | $12.35 | |
| 41 | 5639-530 | SEMI-SYN SHOCK OIL-1 QUART | 1 | $26.95 |
