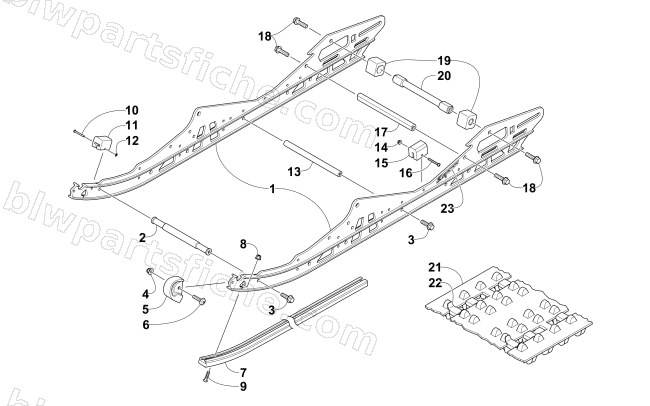

SLIDE RAIL AND TRACK ASSEMBLY
2015 ZR 4000 RR
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 0 | 2704-778 | SUSPENSION,REAR-4000 RR-ASSY | 1 | $5,621.95 | |
| 1 | 2704-585 | RAIL,SUSPENSION-128" RR-PTD BLK | 1 | $300.95 | |
| 2 | 3604-679 | AXLE,XBRC/LMTR-19.94X222.25(M8X1.25) HP | 1 | $74.95 | |
| 3 | 8408-826 | SCREW,CAP-HFH M8X1.25X25 CL8.8 W/2353 | 1 | $0.40 | |
| 4 | 8427-602 | NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z&Y | 1 | $0.12 | |
| 5 | 3604-003 | NOSEPIECE,RAIL-EXVOLUTE | 1 | $19.25 | |
| 6 | 8476-625 | SCREW,MACH-TSTRH M6X1.0X25 Z&Y | 1 | $1.78 | |
| 7 | 3604-827 | WEARSTRIP,SLIDE RAIL-45.00" | 1 | $32.95 | |
| 8 | 8047-366 | NUT,HEX FLG-NY LOCK 1/4-20 GR F Z&Y | 1 | $0.40 | |
| 9 | 0123-859 | SCREW,MACH-PHFH 1/4-20 X 1 1/8 Z&Y | 1 | $1.09 | |
| 10 | 0123-767 | RIVET,SOLID-1/8 X 1.50 | 1 | $0.95 | |
| 11 | 0104-631 | PAD,SHOCK-RUBBER | 1 | $6.06 | |
| 12 | 0123-766 | NUT,PUSH-.125 STUD | 1 | $1.23 | |
| 13 | 3604-667 | AXLE,XBRC-16.51X222.25 (M8X1.25) | 1 | $29.95 | |
| 14 | 8427-502 | NUT,HEX FLG-NYL LOCK M5X0.8 CL8 Z&Y | 1 | $0.95 | |
| 15 | 1604-429 | PAD,SHOCK-RUBBER | 1 | $6.75 | |
| 16 | 8470-540 | SCREW,MACH-TSPNH M5X0.8X40 CL8.8 Z&Y | 1 | $1.37 | |
| 17 | 3604-803 | AXLE,XBRC-REAR ARM-222.25(M10X1.25) | 1 | $38.95 | |
| 18 | 8413-031 | SCREW,CAP-HFH M10X1.25X30 CL10.9 W/2353 | 1 | $2.61 | |
| 19 | 2604-545 | BLOCK, REAR ARM COUPLER | 1 | $13.73 | |
| 20 | 3604-668 | AXLE, XBRC-COUPLER-222.25 (M10X1.25) | 1 | $92.95 | |
| 21 | 2602-491 | TRACK,COBRA-15X129X1.352"(2.86) | 1 | $1,091.95 | |
| 22 | 2602-383 | CLIP,GUIDE | 1 | $4.26 | |
| 23 | 0621-907 | DECAL,SLIDE RAIL | 1 | $5.51 |
