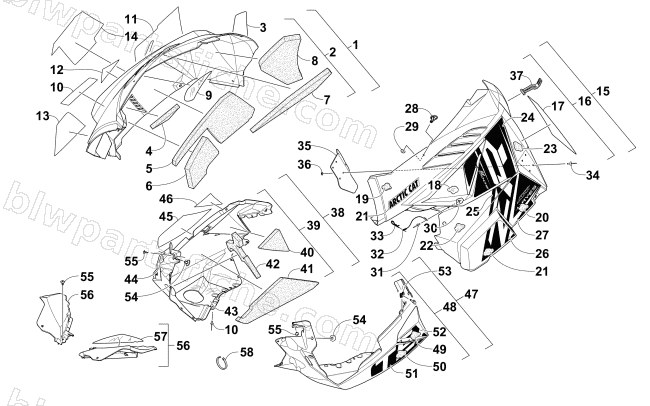

2015 Arctic Cat ZR 6000 R SX — SKID PLATE AND SIDE PANEL ASSEMBLY
2015 ZR 6000 R SX
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 4718-582 | PANEL,SIDE-RH RACE-W/DECALS | 1 | $427.95 | |
| 2 | 4718-608 | PANEL,SIDE-RH TAG-W/FOAM | 1 | $440.95 | |
| 3 | 9611-498 | DECAL,WARNING-FRENCH | 1 | $13.73 | |
| 4 | 0617-736 | FOAM,SIDE PANEL-TOP-RH | 1 | $16.49 | |
| 5 | 0617-634 | FOAM,LWR SIDE PANEL-REAR-RH | 1 | $39.95 | |
| 6 | 0617-632 | FOAM,LWR SIDE PANEL-FRT-RH | 1 | $22.01 | |
| 7 | 0617-696 | FOAM,SIDE PANEL-RH | 1 | $45.95 | |
| 8 | 0617-700 | FOAM,SIDE PANEL-VENT-RH | 1 | $27.95 | |
| 9 | 6606-414 | FOIL,PROTECTIVE-MIDDLE SIDE PANEL-RH | 1 | $1.92 | |
| 10 | 0621-755 | DECAL,HOOD-"ARCTIC CAT"-BLK/GRN | 1 | $5.95 | |
| 11 | 2621-376 | DECAL,SIDE PANEL-UPR RH | 1 | $50.95 | |
| 12 | 2621-374 | DECAL,SIDE PANEL-MID RH | 1 | $19.25 | |
| 13 | 2621-370 | DECAL,SIDE PANEL-FWD RH | 1 | $17.87 | |
| 14 | 2621-372 | DECAL,SIDE PANEL-LWR RH | 1 | $53.95 | |
| 15 | 4718-583 | PANEL,SIDE-LH RACE-W/DECALS | 1 | $427.95 | |
| 16 | 4718-609 | PANEL,SIDE-LH TAG-W/FOAM | 1 | $440.95 | |
| 17 | 9611-499 | DECAL,WARNING-ENGLISH | 1 | $16.49 | |
| 18 | 6606-466 | FOIL,PROTECTIVE-SIDE PANEL | 1 | $3.30 | |
| 19 | 0617-737 | FOAM,SIDE PANEL-TOP-LH | 1 | $38.95 | |
| 20 | 0617-635 | FOAM,LWR SIDE PANEL-REAR-LH | 1 | $12.35 | |
| 21 | 0617-633 | FOAM,LWR SIDE PANEL-FRT-LH | 1 | $22.01 | |
| 22 | 0617-697 | FOAM,SIDE PANEL-LH | 1 | $46.95 | |
| 23 | 0617-735 | FOAM,SIDE PANEL-VENT-LH | 1 | $16.49 | |
| 24 | 2621-377 | DECAL,SIDE PANEL-UPR LH | 1 | $50.95 | |
| 25 | 2621-375 | DECAL,SIDE PANEL-MID LH | 1 | $19.25 | |
| 26 | 2621-371 | DECAL,SIDE PANEL-FWD LH | 1 | $17.87 | |
| 27 | 2621-373 | DECAL,SIDE PANEL-LWR LH | 1 | $53.95 | |
| 28 | 2623-003 | STUD,1/4 TURN-16MM | 1 | $19.95 | |
| 29 | 2623-056 | RETAINER,1/4 TURN | 1 | $1.92 | |
| 30 | 8050-127 | WASHER,FLAT- #8 X .375 X .049 Z&Y | 1 | $1.37 | |
| 31 | 8060-486 | RIVET, BLIND-DH SS54 ZINC | 1 | $0.40 | |
| 32 | 0607-447 | CABLE,5"-HAIRPIN | 1 | $5.37 | |
| 33 | 0605-283 | HAIRPIN,COTTER | 1 | $1.23 | |
| 34 | 8061-708 | RIVET, BLIND-LF SS66 BLACK | 1 | $0.95 | |
| 35 | 6606-660 | PANEL,REINFORCEMENT | 1 | $29.95 | |
| 36 | 0123-802 | WASHER,FLAT .194X.50X.048-Z&Y | 1 | $0.12 | |
| 38 | 4718-584 | PLATE,SKID-RH RACE-W/DECALS | 1 | $192.95 | |
| 39 | 3718-784 | PLATE,SKID-BLK RACE-RH W/FOAM | 1 | $167.95 | |
| 40 | 0617-640 | FOAM,SKID PLATE-REAR-RH | 1 | $3.57 | |
| 41 | 0617-638 | FOAM,SKID PLATE-MIDDLE-RH | 1 | $43.95 | |
| 42 | 0617-636 | FOAM,SKID PLATE-FRT-RH | 1 | $37.95 | |
| 43 | 6606-352 | FOIL,PROTECTIVE-LWR SKID-RH | 1 | $5.65 | |
| 44 | 6606-354 | FOIL,PROTECTIVE-UPR SKID-RH | 1 | $4.54 | |
| 45 | 2621-338 | DECAL,SKID-FWD RH | 1 | $27.95 | |
| 46 | 2621-336 | DECAL,SKID-REAR RH | 1 | $16.49 | |
| 47 | 4718-585 | PLATE,SKID-LH RACE-W/DECALS | 1 | $110.95 | |
| 48 | 3718-785 | PLATE,SKID-BLK RACE-LH-W/FOAM | 1 | $110.95 | |
| 49 | 0617-641 | FOAM,SKID PLATE-REAR-LH | 1 | $3.99 | |
| 50 | 0617-639 | FOAM,SKID PLATE-MIDDLE-LH | 1 | $16.49 | |
| 51 | 2621-339 | DECAL,SKID-FWD LH | 1 | $27.95 | |
| 52 | 2621-337 | DECAL,SKID-REAR LH | 1 | $16.49 | |
| 53 | 2623-005 | CLIP,RECEPTACLE-1/4 TURN STUD | 1 | $2.61 | |
| 54 | 6606-592 | PIN,RETAINER-BODY PLASTIC | 1 | $3.57 | |
| 55 | 1623-129 | R/B 2623-166 | 1 | $0.35 | |
| 56 | 6606-342 | PANEL,FILLER-RH-BLK | 1 | $19.25 | |
| 56 | 3718-303 | PANEL,FILLER W/FOIL-LH | 1 | $19.25 | |
| 57 | 6606-405 | FOIL,PROTECTIVE-FILLER PANEL-LH | 1 | $27.95 | |
| 58 | 0123-903 | TIE,CABLE 11.50 | 1 | $0.54 |
