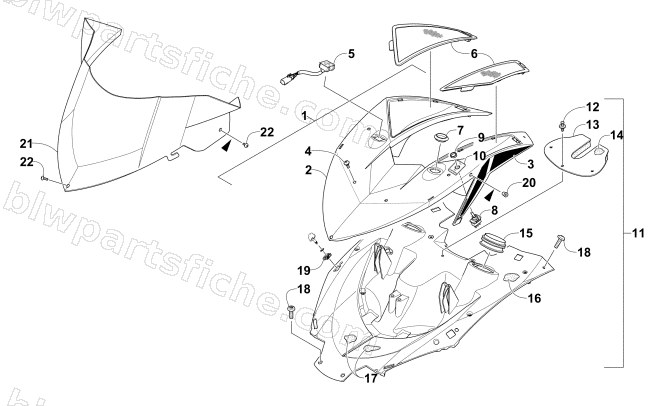

2015 Arctic Cat ZR 6000 R SX — WINDSHIELD AND INSTRUMENTS ASSEMBLIES
2015 ZR 6000 R SX
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 4718-606 | COWL,BLK-W/DECALS | 1 | $175.95 | |
| 2 | 5706-384 | COWL,HEADLIGHT-BLK-ROUTED SC | 1 | $136.95 | |
| 3 | 2621-350 | DECAL,COWL-RH | 1 | $30.95 | |
| 3 | 2621-351 | DECAL,COWL-LH | 1 | $30.95 | |
| 4 | 8477-616 | SCREW,MACH-TSTRH M6X1.0X16 Z&BLK | 1 | $0.68 | |
| 5 | 0630-258 | INDICATOR,"CHECK ENG"-TEMP | 1 | $108.95 | |
| 6 | 0608-736 | SCREEN,INTAKE-INJ MOLD-RH | 1 | $19.25 | |
| 6 | 0608-737 | SCREEN,INTAKE-INJ MOLD-LH | 1 | $19.25 | |
| 7 | 0616-348 | PLUG,BELLYPAN 1.12 | 1 | $1.50 | |
| 8 | 0609-920 | SWITCH,TOGGLE-HEADLIGHT | 1 | $16.49 | |
| 9 | 0609-905 | NUT,KNURLED-BLACK | 1 | $2.75 | |
| 10 | 9611-054 | DECAL,HEADLIGHT | 1 | $15.11 | |
| 11 | 5706-626 | PLENUM,AIR INTAKE-W/FOAM | 1 | $184.95 | |
| 12 | 0623-362 | RIVET,PLASTIC-REINSTALLABLE | 1 | $0.68 | |
| 13 | 5706-633 | CLOSE OFF-W/FOAM | 1 | $20.63 | |
| 15 | 6606-386 | SEAL,UPPER PLENUM | 1 | $3.57 | |
| 16 | 0617-694 | FOAM,AIR INTAKE-MIDDLE | 1 | $29.95 | |
| 17 | 0617-692 | FOAM,AIR INTAKE-RH | 1 | $37.95 | |
| 17 | 0617-693 | FOAM,AIR INTAKE-LH | 1 | $38.95 | |
| 18 | 0423-609 | SCREW,MACH-TSPNWH M6X1.0X23.5 BLK | 1 | $0.95 | |
| 19 | 2623-005 | CLIP,RECEPTACLE-1/4 TURN STUD | 1 | $2.61 | |
| 20 | 1623-764 | NUT EXPANSION-M5-0.8 | 1 | $5.45 | |
| 21 | 6606-622 | WINDSHIELD,EXT LOW-TEAM ARC GRN | 1 | $185.95 | |
| 22 | 8477-516 | SCREW,MACH-TSTRH M5X0.8X16 Z&BLK | 1 | $0.68 |
