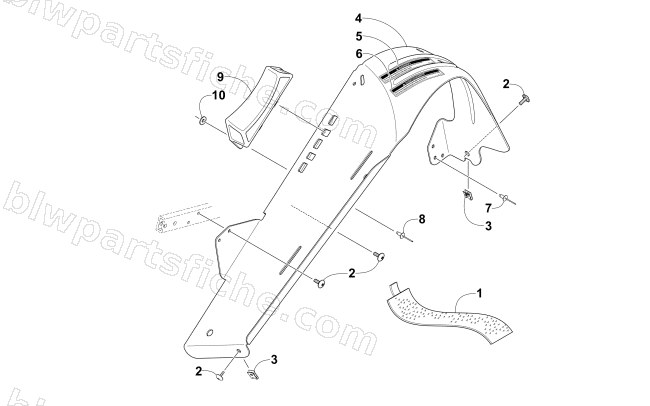

2015 Arctic Cat ZR 6000 R XC — BELT GUARD ASSEMBLY
2015 ZR 6000 R XC
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0707-582 | RETAINER, DRIVE BELT-VELCRO | 1 | $17.87 | |
| 2 | 0623-797 | SCREW,SELF TAP-TSTH 10-12X1/2 WO/GP | 1 | $0.45 | |
| 3 | 1623-052 | NUT,U | 1 | $0.95 | |
| 4 | 2707-278 | GUARD,CLUTCH-DSI-W/DECALS | 1 | $113.95 | |
| 5 | 9611-690 | DECAL,WARNING-GUARD-ENGLISH | 1 | $3.16 | |
| 6 | 9611-691 | DECAL,WARNING-GUARD-FRENCH (9611-690) | 1 | $3.16 | |
| 7 | 8060-686 | RIVET,BLIND-DH SS64 ZINC | 1 | $0.40 | |
| 8 | 8060-688 | RIVET,BLIND-DH SS66 ZINC | 1 | $0.40 | |
| 9 | 3612-016 | PAD,MOUNTING-EXP CHAMBER | 1 | $30.95 | |
| 10 | 0123-802 | WASHER,FLAT .194X.50X.048-Z&Y | 1 | $0.12 |
