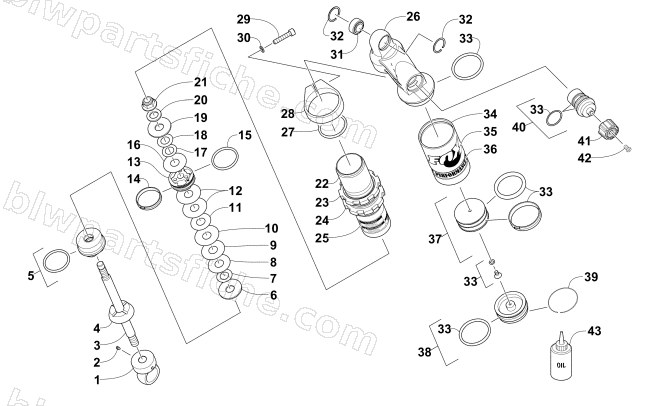

2015 Arctic Cat ZR 6000 R XC — REAR SUSPENSION FRONT ARM SHOCK ABSORBER
2015 ZR 6000 R XC
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 0 | 2704-635 | SHOCK,FRT ARM-CROSS COUNTRY | 1 | $640.95 | |
| 1 | 3604-842 | EYELET, SHOCK | 1 | $221.95 | |
| 2 | 1603-940 | SCREW-SET,8-32X.250 | 1 | $1.95 | |
| 3 | 3604-895 | SHAFT,SHOCK-.498 X 6.96" | 1 | $98.95 | |
| 4 | 3604-530 | BUMPER,SHOCK-.450 ID X .400 TLG | 1 | $49.95 | |
| 5 | 2604-413 | BEARING,ENDCAP.498" X 1.21"-ASSY | 1 | $151.95 | |
| 6 | 0603-540 | WASHER, TOP OUT-1.125OD X .378 ID X.093 | 1 | $16.49 | |
| 7 | 0603-731 | VALVE, .700X.004(3/8ID) | 1 | $13.95 | |
| 8 | 0603-893 | VALVE, SHOCK 1.00X.004(040-04-100) | 1 | $7.95 | |
| 9 | 0603-892 | VALVE,1.100X.004 (040-04-110) | 1 | $6.95 | |
| 10 | 0603-350 | VALVE,1.300X.010(3/8ID) | 1 | $17.95 | |
| 11 | 0603-895 | VALVE, SHOCK .800X.004 (3/8 ID) | 1 | $7.95 | |
| 12 | 0603-349 | VALVE,1.300X.008(3/8ID) | 1 | $13.95 | |
| 13 | 2603-897 | PISTON,HIGH FLOW-.035 ORIFICE | 1 | $72.95 | |
| 14 | 2603-994 | BEARING,EXTERNAL GLIDE RING-1.459" BORE | 1 | $26.95 | |
| 15 | 2604-214 | O-RING-25MM ID X 1.5 MM CS | 1 | $4.95 | |
| 16 | 0603-343 | VALVE,1.100X.008(3/8ID) | 1 | $6.95 | |
| 17 | 3604-171 | VALVE, .600X.004(3/8ID) | 1 | $12.95 | |
| 18 | 0603-332 | VALVE, .700X.010(3/8ID) | 1 | $12.95 | |
| 19 | 3604-170 | PLATE,TOP-OUT-1.125OD X .378ID X .080 | 1 | $21.95 | |
| 20 | 0603-389 | WASHER,BACKUP | 1 | $12.95 | |
| 21 | 0603-301 | NUT,CAP-FOX SHOCK | 1 | $6.95 | |
| 22 | 3604-729 | BODY,INTERNAL GROOVES-1.459"BOREX5.5"TLG | 1 | $184.95 | |
| 23 | 2604-841 | RING,PRELOAD LOCK-2.40 OD X .300 TLG | 1 | $50.95 | |
| 24 | 2604-840 | RING,PRELOAD-2.40 OD X .600 TLG | 1 | $50.95 | |
| 25 | 3603-418 | DECAL BAND [4.4 X 1.5] WARNING SYMBOLS | 1 | $12.35 | |
| 26 | 3604-522 | BODY,CAP-PIGGYBACK -102.5 DEG-ASSY | 1 | $408.95 | |
| 27 | 0603-438 | O-RING -END CAP | 1 | $4.95 | |
| 28 | 3604-532 | CLAMP,BODY CAP-1.90 ID X M5 | 1 | $81.95 | |
| 29 | 3604-526 | BEARING,SPHERICAL-.875 OD X .375 W | 1 | $89.95 | |
| 30 | 3604-527 | RING,RETAINING-SPIRAL-.021"X.926" OD | 1 | $13.73 | |
| 31 | 4604-017 | KIT,REBUILD-SEAL/BEARING | 1 | $93.95 | |
| 32 | 3603-488 | RESERVOIR, 1.834 BORE X 3.50TLG BLACK AN | 1 | $90.95 | |
| 33 | 3603-378 | DECAL,RESERVOIR-PERFORMANCE SERIES | 1 | $17.87 | |
| 34 | 3603-365 | DECAL,BAND-PERFORMANCE SERIES | 1 | $17.87 | |
| 35 | 3604-422 | BODY,1.459 BORE-5.590 TLG | 1 | $169.95 | |
| 36 | 3603-392 | END CAP,RESERVOIR-ASSY 1.834 BORE | 1 | $38.95 | |
| 37 | 3603-379 | RING,RETAINING-SPIRAL-1.117 OD | 1 | $2.61 | |
| 38 | 3603-466 | DAMPING ADJUST ASSY - LSC - HARD | 1 | $101.95 | |
| 39 | 3603-385 | KNOB,DAMPING ADJUST-LOW SPEED | 1 | $3.99 | |
| 40 | 3603-377 | SCREW,#4-40 X 1/4 SS | 1 | $12.35 | |
| 41 | 5639-530 | SEMI-SYN SHOCK OIL-1 QUART | 1 | $26.95 |
