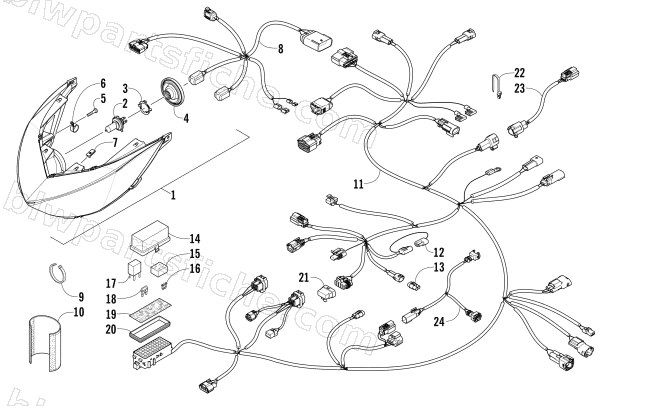

2015 Arctic Cat ZR 6000 SNO PRO ES — HEADLIGHT AND WIRING ASSEMBLIES
2015 ZR 6000 SNO PRO ES
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0609-899 | R/B 0609-967 | 1 | $417.95 | |
| 2 | 0109-724 | R/B 0609-956 | 1 | $29.95 | |
| 3 | 0409-097 | RETAINER,H/L HS-1 ECE | 1 | $34.95 | |
| 4 | 0609-919 | BOOT,BULB | 1 | $29.95 | |
| 5 | 1623-915 | SCREW,PLASTITE-TSPNH-1/4-10 X 1.25 RIE B | 1 | $1.50 | |
| 6 | 1623-675 | CLAMP,CABLE,11/16 INSUL-1/4" MTG | 1 | $1.92 | |
| 7 | 0423-031 | NUT,SPEED M6 X 1.0 U-TYPE | 1 | $0.95 | |
| 8 | 1686-706 | HARNESS, HOOD-CWI | 1 | $231.95 | |
| 9 | 0123-811 | TIE,CABLE-4 INCH PLT1M | 1 | $0.26 | |
| 9 | 0123-788 | TIE,CABLE-8.5/7.5/7.4 | 1 | $0.12 | |
| 9 | 0123-903 | TIE,CABLE 11.50 | 1 | $0.54 | |
| 10 | 5706-618 | WRAP,WIRE HARNESS-11" X 10.50" | 1 | $22.01 | |
| 11 | 1686-707 | HARNESS, MAIN- 600 CWI ES | 1 | $978.95 | |
| 12 | 0486-164 | TETHER,REAR ACCESSORY CONNECTOR | 1 | $12.35 | |
| 13 | 0630-325 | PLUG,DIAGNOSTIC CONNECTOR | 1 | $33.95 | |
| 14 | 0430-085 | COVER,PDM (4X12) | 1 | $6.34 | |
| 15 | 0430-037 | HOLDER,SPARE FUSE-FOAM | 1 | $3.02 | |
| 16 | 0430-068 | FUSE,MINI-7.5 AMP | 1 | $2.95 | |
| 16 | 0430-031 | FUSE, MINI-15A | 1 | $4.54 | |
| 16 | 0430-098 | FUSE,MINI-20A | 1 | $2.95 | |
| 16 | 0430-030 | FUSE, MINI-30A | 1 | $2.88 | |
| 17 | 0430-033 | RELAY, SPDT-5P 12V/30A | 1 | $27.95 | |
| 18 | 0430-034 | DIODE, MINI-1A | 1 | $16.49 | |
| 19 | 0621-787 | DECAL,POWER DISTRIBUTION MODULE-2 STK | 1 | $36.95 | |
| 20 | 0430-086 | SEAL,PDM (4X12) | 1 | $2.75 | |
| 21 | 0430-103 | COVER,ASS'Y-DIAGNOSTIC CONN'R (10P) | 1 | $15.11 | |
| 22 | 0623-677 | CABLE TIE,PUSH MOUNT-X MAS CLIP | 1 | $1.09 | |
| 23 | 1686-684 | HARNESS,TAILLIGHT EXTENSION- 1550mm | 1 | $30.95 | |
| 24 | 1686-663 | HARNESS,INJECTOR-600R-CWI | 1 | $149.95 |
