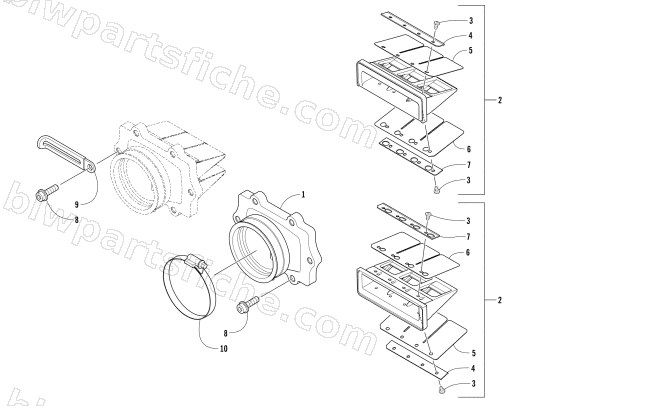

2015 Arctic Cat ZR 6000 SNO PRO LTD ES — REED VALVE ASSEMBLY
2015 ZR 6000 SNO PRO LTD ES
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0907-003 | MANIFOLD, INTAKE-50MM | 1 | $82.95 | |
| 2 | 0907-001 | VALVE,REED-ASSY | 1 | $73.95 | |
| 3 | 0923-045 | SCREW, PPNH-M 3X6 | 1 | $0.26 | |
| 4 | 0907-007 | STOPPER, REED-OUTER | 1 | $2.47 | |
| 5 | 0907-005 | REED #1 (0.4, 50/50) | 1 | $15.11 | |
| 6 | 0907-006 | REED #2 (0.4, 50/50) | 1 | $15.11 | |
| 7 | 0907-008 | STOPPER, REED-INNER | 1 | $2.47 | |
| 8 | 0923-025 | SCREW,CAP-TSRDWH M6X1X20 CL 10.9 | 1 | $0.54 | |
| 9 | 1623-984 | CLAMP,WIRE - 76.14MM LG W/6.25 HOLE | 1 | $6.20 | |
| 10 | 0423-019 | CLAMP,HOSE-WORM (NORMA 50-70) | 1 | $2.47 |
