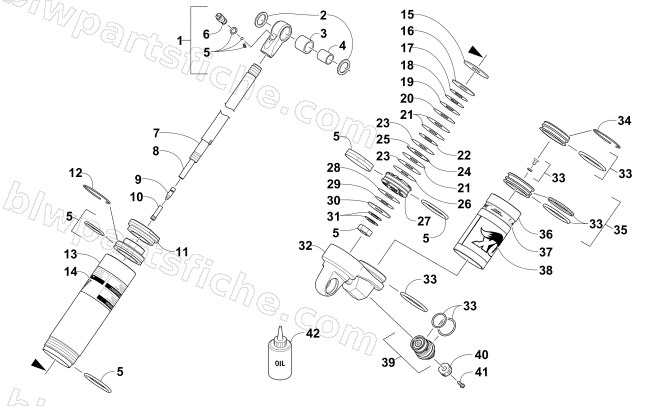

2015 Arctic Cat ZR 6000 TUCKER HIBBERT RR — REAR SUSPENSION REAR ARM SHOCK ABSORBER
2015 ZR 6000 TUCKER HIBBERT RR
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 0 | 2704-733 | SHOCK,ARM-KASHIMA RR-14.51" | 1 | $1,039.95 | |
| 1 | 4604-024 | EYELET,SHOCK | 1 | $136.95 | |
| 2 | 4604-077 | EYELET PARTS,SPACER .621X.050 BLACK | 1 | $59.95 | |
| 3 | 3603-399 | BUSHING,EYELET-.403 ID X .621 OD X .740 | 1 | $35.95 | |
| 4 | 4604-076 | EYELET PARTS,SLEEVE 0.403X0.621X0.950 | 1 | $19.25 | |
| 5 | 4604-027 | KIT,REBUILD-SEAL/BEARING | 1 | $141.95 | |
| 6 | 4604-022 | KNOB,REBOUND ADJUST-3/8-32 | 1 | $26.95 | |
| 7 | 4604-025 | SHAFT,CHROME-.620 OD X 7.90" TLG | 1 | $159.95 | |
| 8 | 4604-023 | ROD,DAMPING ADJUST-.175 OD X 5.80" | 1 | $17.95 | |
| 9 | 2604-953 | NEEDLE,DAMPING ADJUST-W/O-RING | 1 | $43.95 | |
| 10 | 4604-029 | DAMPING ADJUST-JET/CHECK VALVE-ASSY | 1 | $85.95 | |
| 11 | 3603-450 | BEARING ASSY, BEARING CAP | 1 | $70.95 | |
| 12 | 0604-992 | RETAINER, .062X1.850 ID ENDCAP | 1 | $6.06 | |
| 13 | 3603-449 | BODY,1.834X7.1 KASHIMA | 1 | $178.95 | |
| 14 | 3603-418 | DECAL BAND [4.4 X 1.5] WARNING SYMBOLS | 1 | $12.35 | |
| 15 | 4604-026 | SPACER,SHAFT-.630 X1.570X.100 | 1 | $12.95 | |
| 16 | 2604-449 | WASHER, TOPOUT-1.570OD X .500ID X .128TH | 1 | $13.73 | |
| 17 | 2604-480 | VALVE,.950 OD X .504 ID X .010 TH | 1 | $13.95 | |
| 18 | 2604-485 | VALVE,1.100 OD X .504 ID X .008 TH | 1 | $6.95 | |
| 19 | 2604-491 | VALVE,1.350 OD X .504 ID X .008 TH | 1 | $12.95 | |
| 20 | 2604-496 | VALVE,1.425 OD X .504 ID X .008 TH | 1 | $12.95 | |
| 21 | 2604-501 | VALVE,1.600 OD X .504 ID X .008 TH | 1 | $12.95 | |
| 22 | 2604-486 | VALVE,1.100 OD X .504 ID X .010 TH | 1 | $13.95 | |
| 23 | 2604-502 | VALVE,1.600 OD X .504 ID X .010 TH | 1 | $12.95 | |
| 24 | 2604-693 | VALVE,RING SHIM-1.600ODX1.435IDX.015THK | 1 | $13.95 | |
| 25 | 2604-498 | VALVE,1.425 OD X .504 ID X .012 TH | 1 | $12.95 | |
| 26 | 3603-410 | VALVE,SB 4PORT-1.600OD X.502IDX.006THK | 1 | $20.95 | |
| 27 | 0403-394 | PISTON,DAMPING-4PORT-1.834" BORE FOX | 1 | $66.95 | |
| 28 | 2604-497 | VALVE,1.425 OD X .504 ID X .010 TH | 1 | $12.95 | |
| 29 | 4604-036 | VALVE,1.150 OD X .504 ID X .0045 TH | 1 | $12.95 | |
| 30 | 3604-624 | WASHER,TOP OUT-1.40 X .504 X.080 GROUND | 1 | $6.95 | |
| 31 | 3604-184 | WASHER,BACKUP-.750 OD X .503 ID X .100TH | 1 | $13.95 | |
| 32 | 3603-448 | BODY,CAP,PIGGY BACK | 1 | $191.95 | |
| 33 | 4604-017 | KIT,REBUILD-SEAL/BEARING | 1 | $93.95 | |
| 34 | 3603-379 | RING,RETAINING-SPIRAL-1.117 OD | 1 | $2.61 | |
| 35 | 3603-422 | PISTON ASSY - FLOAT MAX BLEED | 1 | $70.95 | |
| 36 | 3603-446 | RESERVOIR, KASHIMA 1.8 x 4.00 | 1 | $128.95 | |
| 37 | 3603-438 | DECAL 2014 BAND 2 SS TH | 1 | $19.25 | |
| 38 | 3603-437 | DECAL, RESERVOIR - FS KASHIMA | 1 | $19.25 | |
| 39 | 4604-019 | DAMPING ADJUST-LSC ADJUSTER ASSY | 1 | $89.95 | |
| 40 | 3603-385 | KNOB,DAMPING ADJUST-LOW SPEED | 1 | $3.99 | |
| 41 | 3603-377 | SCREW,#4-40 X 1/4 SS | 1 | $12.35 | |
| 42 | 5639-530 | SEMI-SYN SHOCK OIL-1 QUART | 1 | $26.95 |
