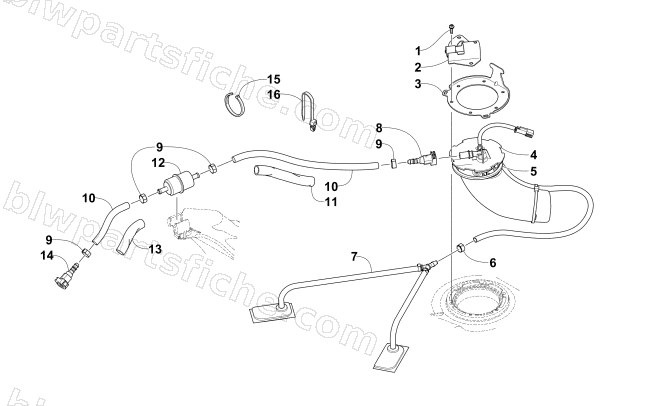

FUEL PUMP ASSEMBLY
2015 ZR 7000 LXR
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0423-898 | SCREW,TSPH-THRD FORM M5X0.8X20MM SEMS | 1 | $0.54 | |
| 2 | 2670-467 | PROTECTOR,FUEL PUMP | 1 | $102.95 | |
| 3 | 2670-395 | MOUNT,FUEL PUMP | 1 | $49.95 | |
| 4 | 2670-361 | PUMP,FUEL | 1 | $536.95 | |
| 5 | 0470-838 | SEAL,FUEL-PUMP | 1 | $3.16 | |
| 6 | 1623-655 | CLAMP,HOSE-CRIMP-11.3 | 1 | $3.30 | |
| 7 | 2670-278 | PICKUP,FUEL-ASSY | 1 | $208.95 | |
| 8 | 2670-141 | FITTING,QUICK CONNECTOR | 1 | $12.35 | |
| 9 | 0610-563 | CLAMP, HOSE-13.2MM-15.7MM | 1 | $1.78 | |
| 10 | 0610-971 | HOSE,FUEL-IN TANK-10 FT | 1 | $267.95 | |
| 11 | 2670-456 | LOOM,PROTECTIVE-750mm | 1 | $38.95 | |
| 12 | 1670-825 | FILTER,FUEL | 1 | $45.95 | |
| 13 | 2670-455 | LOOM,PROTECTIVE-75mm | 1 | $12.35 | |
| 14 | 2670-341 | FITTING,QUICK CONNECT-STRAIGHT | 1 | $29.95 | |
| 15 | 0123-788 | TIE,CABLE-8.5/7.5/7.4 | 1 | $0.12 | |
| 15 | 0623-751 | CABLE TIE,REUSABLE-('98 440 PRO) | 1 | $0.95 | |
| 16 | 0623-677 | CABLE TIE,PUSH MOUNT-X MAS CLIP | 1 | $1.09 |
