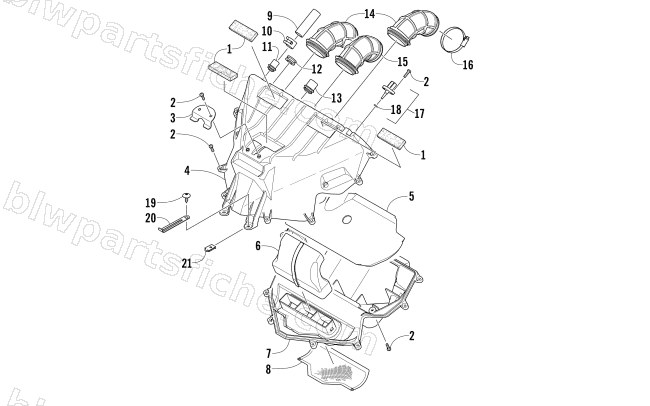

2015 Arctic Cat ZR 7000 SNO PRO LTD EL TIGRE — AIR INTAKE ASSEMBLY
2015 ZR 7000 SNO PRO LTD EL TIGRE
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 5606-682 | BUMPER, FUEL TANK | 1 | $3.71 | |
| 2 | 1623-251 | SCREW,PLASTITE-TXSPNH 10-14X3/4 Z&Y | 1 | $0.26 | |
| 3 | 0613-142 | BRKT,RETAINING-RADIATOR SHROUD | 1 | $5.09 | |
| 4 | 2670-321 | R/B 2670-499 | 1 | $57.95 | |
| 5 | 2670-322 | BAFFLE,INTAKE-Z3 | 1 | $20.63 | |
| 6 | 2670-365 | STACK,FLOW-AIR INTAKE-ASSY | 1 | $17.87 | |
| 7 | 2670-320 | SILENCER,AIR-LOWER | 1 | $65.95 | |
| 8 | 2670-396 | SCREEN,AIR INTAKE | 1 | $16.49 | |
| 9 | 0410-143 | HOSE,FUEL-1/4" 25' (0410-141 CTL) | 1 | $217.95 | |
| 10 | 1623-966 | CLAMP,HOSE - #CTL-8 | 1 | $2.06 | |
| 11 | 2670-432 | RETAINER, HOSE-13mm ID | 1 | $2.06 | |
| 12 | 2623-039 | GROMMET,RUBBER-17.5X25.4X9.5 | 1 | $1.64 | |
| 13 | 2670-433 | RETAINER, HOSE-19mm ID | 1 | $2.19 | |
| 14 | 2670-279 | BOOT,THROTTLE BODY | 1 | $53.95 | |
| 15 | 2670-280 | BOOT,THROTTLE BODY | 1 | $53.95 | |
| 16 | 0423-066 | CLAMP,HOS-WORM 50mmX9mm (40-60 NOMA) | 1 | $6.47 | |
| 17 | 0430-055 | SENSOR,AIR TEMP | 1 | $30.95 | |
| 18 | 5507-224 | O-RING,AIR TEMP SENSOR | 1 | $6.06 | |
| 19 | 1623-129 | R/B 2623-166 | 1 | $0.35 | |
| 20 | 1623-984 | CLAMP,WIRE - 76.14MM LG W/6.25 HOLE | 1 | $6.20 | |
| 21 | 1623-052 | NUT,U | 1 | $0.95 |
