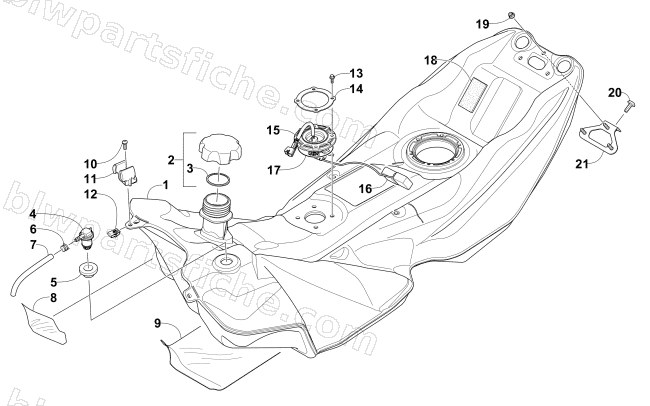

2015 Arctic Cat ZR 7000 SNO PRO LTD EL TIGRE — GAS TANK ASSEMBLY
2015 ZR 7000 SNO PRO LTD EL TIGRE
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1770-035 | TANK,FUEL-4 STRK-S/P ASSY | 1 | $412.95 | |
| 2 | 0470-438 | CAP,FUEL TANK | 1 | $13.73 | |
| 4 | 1670-787 | VALVE,CHECK | 1 | $34.95 | |
| 5 | 1670-822 | GROMMET,3/4"-FUEL TANK | 1 | $3.85 | |
| 6 | 1623-233 | CLAMP, HOSE-10.41mm ID | 1 | $0.68 | |
| 7 | 6101-009 | HOSE,.235 ID X .370 OD (50') | 1 | $469.95 | |
| 7 | 6101-001 | HOSE,.235 ID X .370 OD (100') | 1 | $892.95 | |
| 8 | 2670-451 | R/B 3612-316 | 1 | $13.95 | |
| 9 | 2670-434 | R/B 3612-315 | 1 | $13.95 | |
| 10 | 8470-516 | SCREW,MACH-TSPNH M5X.8X16 CL8.8 Z&Y | 1 | $0.26 | |
| 11 | 2670-339 | BRKT,MTG-FUEL FILTER | 1 | $3.44 | |
| 12 | 1623-637 | CLIP,U-NUT (M5) | 1 | $2.47 | |
| 13 | 8408-517 | SCREW,CAP-HFH M5X0.8X16 CL8.8 Z&Y W/2353 | 1 | $2.75 | |
| 14 | 2670-431 | RETAINER,FLANGE-LSA | 1 | $27.95 | |
| 15 | 2670-386 | SENDER, FUEL LEVEL | 1 | $208.95 | |
| 16 | 2670-235 | FLOAT,FUEL PUMP-WALBRO 75-22 | 1 | $6.89 | |
| 17 | 2623-035 | O-RING,46.9 ID X 5.3mm WIDE - 2-328 | 1 | $6.75 | |
| 18 | 0645-760 | PAD,BATTERY | 1 | $3.99 | |
| 19 | 8427-602 | NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z&Y | 1 | $0.12 | |
| 20 | 8477-616 | SCREW,MACH-TSTRH M6X1.0X16 Z&BLK | 1 | $0.68 | |
| 21 | 5706-771 | BRKT,MTG-SEAT LATCH-ASSY | 1 | $15.11 |
