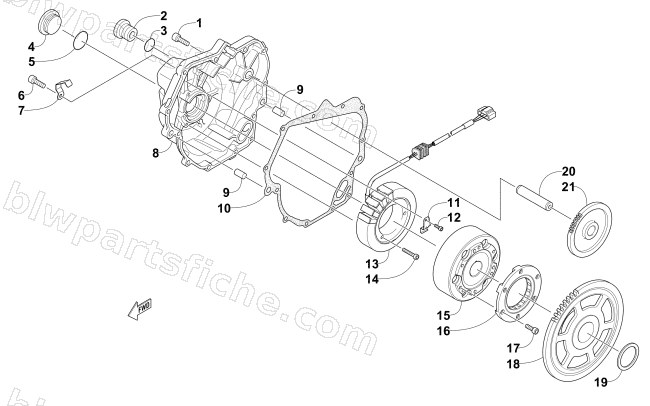

2015 Arctic Cat ZR 7000 SNO PRO LTD EL TIGRE — MAGNETO AND COVER ASSEMBLY
2015 ZR 7000 SNO PRO LTD EL TIGRE
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3020-345 | SCREW,CAP-HSH | 1 | $12.35 | |
| 2 | 3020-346 | PLUG | 1 | $16.49 | |
| 3 | 3020-347 | O-RING | 1 | $5.37 | |
| 4 | 3020-348 | PLUG | 1 | $30.95 | |
| 5 | 3020-349 | O-RING | 1 | $5.37 | |
| 6 | 3020-314 | SCREW,CAP-HSH | 1 | $4.26 | |
| 7 | 3020-350 | BRACKET,RETAINING | 1 | $12.35 | |
| 8 | 3020-351 | COVER,MAGNETO | 1 | $294.95 | |
| 9 | 3020-293 | PIN, DOWEL | 1 | $6.75 | |
| 10 | 3020-352 | GASKET,MAGNETO COVER | 1 | $26.95 | |
| 11 | 3020-353 | BRACKET,RETAINING | 1 | $5.37 | |
| 12 | 3020-354 | SCREW,CAP-HSH | 1 | $3.85 | |
| 13 | 3020-355 | STATOR | 1 | $663.95 | |
| 14 | 3020-356 | SCREW,CAP-HSH | 1 | $12.35 | |
| 15 | 3020-357 | ROTOR/FLYWHEEL | 1 | $838.95 | |
| 16 | 3020-358 | CLUTCH,STARTER-ONE WAY | 1 | $354.95 | |
| 17 | 3020-359 | SCREW,CAP-HSH | 1 | $2.75 | |
| 18 | 3020-360 | GEAR,CLUTCH-STARTER | 1 | $184.95 | |
| 19 | 3020-361 | WASHER | 1 | $4.26 | |
| 20 | 3020-362 | SHAFT,IDLER GEAR | 1 | $8.21 | |
| 21 | 3020-363 | GEAR, IDLER-STARTER | 1 | $128.95 |
