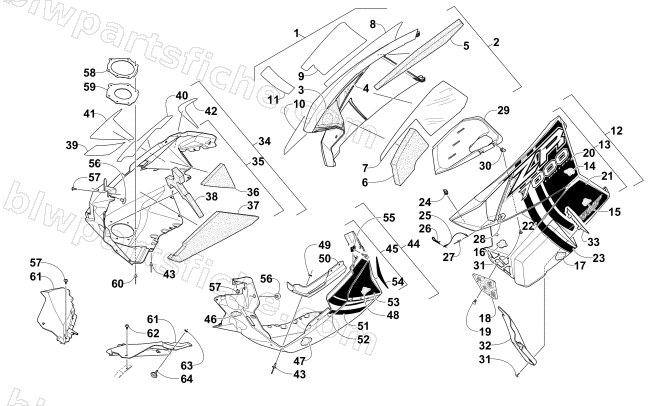

2015 Arctic Cat ZR 7000 SNO PRO LTD — SKID PLATE AND SIDE PANEL ASSEMBLY
2015 ZR 7000 SNO PRO LTD
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 4718-290 | PANEL,SIDE-RH W/DECALS(ZR 7000 LTD ORN) | 1 | $359.95 | |
| 2 | 3718-454 | PANEL,SIDE-RH WHT-W/FOAM-4 STRK | 1 | $137.95 | |
| 3 | 0617-626 | FOAM,UPPER SIDE PANEL-FRT-RH | 1 | $4.26 | |
| 4 | 6606-414 | FOIL,PROTECTIVE-MIDDLE SIDE PANEL-RH | 1 | $1.92 | |
| 5 | 0617-628 | FOAM,UPPER SIDE PANEL-REAR-RH | 1 | $37.95 | |
| 6 | 0617-632 | FOAM,LWR SIDE PANEL-FRT-RH | 1 | $22.01 | |
| 7 | 6606-416 | FOIL,PROTECTIVE-LWR SIDE PANEL-REAR-RH | 1 | $3.57 | |
| 8 | 1621-604 | DECAL,SIDE PANEL-UPR-ORN-RH (ZR7000 LTD) | 1 | $110.95 | |
| 9 | 1621-624 | DECAL,SIDE PANEL-LWR-ORN-RH (LTD) | 1 | $30.95 | |
| 10 | 1621-622 | DECAL,SIDE PANEL-MID-ORN-RH (LTD) | 1 | $5.92 | |
| 11 | 1621-626 | DECAL,SIDE PANEL-FWD-ORN-RH (LTD) | 1 | $15.11 | |
| 12 | 4718-291 | PANEL,SIDE-LH W/DECALS(ZR 7000 LTD ORN) | 1 | $359.95 | |
| 13 | 4718-103 | PANEL,SIDE-LH-W/FOAM-WHT | 1 | $259.95 | |
| 14 | 0617-629 | FOAM,UPPER SIDE PANEL-REAR-LH | 1 | $16.49 | |
| 15 | 0617-635 | FOAM,LWR SIDE PANEL-REAR-LH | 1 | $12.35 | |
| 16 | 0617-631 | FOAM,MIDDLE SIDE PANEL-LH | 1 | $4.26 | |
| 17 | 0617-681 | FOAM,LWR SIDE PANEL-FRT-LH | 1 | $5.65 | |
| 18 | 2602-704 | SCREEN, AIR DEFLECTOR | 1 | $19.25 | |
| 19 | 0623-269 | CLIP, CHRISTMAS TREE | 1 | $1.23 | |
| 20 | 1621-605 | DECAL,SIDE PANEL-UPR-ORN-LH (ZR7000 LTD) | 1 | $110.95 | |
| 21 | 1621-625 | DECAL,SIDE PANEL-LWR-ORN-LH (LTD) | 1 | $30.95 | |
| 22 | 1621-623 | DECAL,SIDE PANEL-MID-ORN-LH (LTD) | 1 | $5.92 | |
| 23 | 1621-627 | DECAL,SIDE PANEL-FWD-ORN-LH (LTD) | 1 | $15.11 | |
| 24 | 1623-637 | CLIP,U-NUT (M5) | 1 | $2.47 | |
| 25 | 0607-447 | CABLE,5"-HAIRPIN | 1 | $5.37 | |
| 26 | 0605-283 | HAIRPIN,COTTER | 1 | $1.23 | |
| 27 | 8060-486 | RIVET, BLIND-DH SS54 ZINC | 1 | $0.40 | |
| 28 | 8050-127 | WASHER,FLAT- #8 X .375 X .049 Z&Y | 1 | $1.37 | |
| 29 | 1702-369 | DUCT,AIR-CLUTCH W/FOIL | 1 | $39.95 | |
| 30 | 1623-030 | NUT,SPEED-#10B U TYPE | 1 | $0.95 | |
| 31 | 0623-797 | SCREW,SELF TAP-TSTH 10-12X1/2 WO/GP | 1 | $0.45 | |
| 32 | 2602-711 | DEFLECTOR,AIR | 1 | $19.25 | |
| 33 | 2602-703 | RETAINER,AIR DEFLECTOR | 1 | $12.35 | |
| 34 | 4718-328 | PLATE,SKID-RH W/DECAL (7000 LTD ORN) | 1 | $333.95 | |
| 35 | 4718-534 | PLATE,SKID-RH WHT-W/FOAM (7000) | 1 | $167.95 | |
| 36 | 0617-640 | FOAM,SKID PLATE-REAR-RH | 1 | $3.57 | |
| 37 | 0617-638 | FOAM,SKID PLATE-MIDDLE-RH | 1 | $43.95 | |
| 38 | 0617-636 | FOAM,SKID PLATE-FRT-RH | 1 | $37.95 | |
| 39 | 1621-630 | DECAL,SKID PLATE-FWD-ORN-RH (LTD) | 1 | $20.63 | |
| 40 | 1621-628 | DECAL,SKID PLATE-UPPER-ORN-RH (LTD) | 1 | $6.75 | |
| 41 | 1621-680 | DECAL,SKID PLATE-MID-RH (LTD) | 1 | $16.49 | |
| 42 | 1621-682 | DECAL,SKID PLATE-REAR-RH (LTD) | 1 | $13.73 | |
| 43 | 8061-708 | RIVET, BLIND-LF SS66 BLACK | 1 | $0.95 | |
| 43 | 8061-688 | RIVET,BLIND-LF SS66 ZINC | 1 | $0.95 | |
| 44 | 4718-189 | PLATE,SKID-LH-WHT/ORN W/DECALS (LTD) | 1 | $152.95 | |
| 45 | 4718-533 | PLATE,SKID-LH-W/FOAM-WHT | 1 | $126.95 | |
| 46 | 0617-637 | FOAM,SKID PLATE-FRT-LH | 1 | $16.49 | |
| 47 | 0617-639 | FOAM,SKID PLATE-MIDDLE-LH | 1 | $16.49 | |
| 48 | 0617-641 | FOAM,SKID PLATE-REAR-LH | 1 | $3.99 | |
| 49 | 0123-802 | WASHER,FLAT .194X.50X.048-Z&Y | 1 | $0.12 | |
| 50 | 6606-613 | RETAINER,TAB-SIDE PANEL | 1 | $12.35 | |
| 51 | 1621-631 | DECAL,SKID PLATE-FWD-ORN-LH (LTD) | 1 | $19.25 | |
| 52 | 1621-629 | DECAL,SKID PLATE-UPPER-ORN-LH (LTD) | 1 | $6.75 | |
| 53 | 1621-681 | DECAL,SKID PLATE-MID-LH (LTD) | 1 | $5.37 | |
| 54 | 1621-683 | DECAL,SKID PLATE-REAR-LH (LTD) | 1 | $13.73 | |
| 55 | 2623-005 | CLIP,RECEPTACLE-1/4 TURN STUD | 1 | $2.61 | |
| 56 | 6606-592 | PIN,RETAINER-BODY PLASTIC | 1 | $3.57 | |
| 57 | 1623-129 | R/B 2623-166 | 1 | $0.35 | |
| 58 | 2612-685 | PLATE,EXHAUST-OUTLET | 1 | $58.95 | |
| 59 | 2612-964 | SEAL,EXHAUST OUTLET-7000 | 1 | $12.35 | |
| 60 | 8061-508 | RIVET,BLIND-LF SS56 BLACK | 1 | $1.37 | |
| 61 | 6606-342 | PANEL,FILLER-RH-BLK | 1 | $19.25 | |
| 61 | 6606-579 | PANEL,FILLER-LH BK-Z3 | 1 | $34.95 | |
| 62 | 0623-784 | R/B 2623-163 | 1 | $0.35 | |
| 63 | 2623-001 | RETAINER,PUSHNUT-3/16" STUD | 1 | $0.40 | |
| 64 | 1623-999 | SCREW,1" RND KNOB-M5X0.8X20mm LG | 1 | $4.95 |
