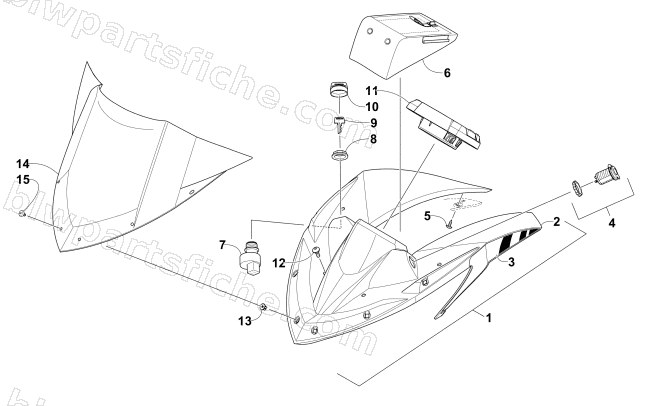

2015 Arctic Cat ZR 7000 SNO PRO LTD — WINDSHIELD AND INSTRUMENT ASSEMBLIES
2015 ZR 7000 SNO PRO LTD
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 4718-104 | COWL,HEADLIGHT-WHT-W/ORN DECAL(7000) | 1 | $175.95 | |
| 2 | 6606-692 | COWL,HEADIGHT-Z3-WHITE | 1 | $185.95 | |
| 3 | 1621-598 | DECAL,COWL-ORN-RH (LTD) | 1 | $17.87 | |
| 3 | 1621-599 | DECAL,COWL-ORN-LH (LTD) | 1 | $17.87 | |
| 4 | 0641-897 | OUTLET, ACCESSORY - 12V DC | 1 | $23.39 | |
| 5 | 1623-129 | R/B 2623-166 | 1 | $0.35 | |
| 6 | 6606-566 | BAG,GOGGLE | 1 | $77.95 | |
| 7 | 0609-911 | SWITCH,IGNITION-W/KEY | 1 | $66.95 | |
| 8 | 0430-050 | NUT,FLANGE-KEYSWITCH | 1 | $1.92 | |
| 9 | 0430-042 | KEY,IGNITION SERIES-Y (LH BLANK) | 1 | $5.92 | |
| 9 | 0430-043 | KEY,IGNITION SERIES-Z (RH BLANK) | 1 | $11.95 | |
| 10 | 0430-054 | COVER,KEY | 1 | $15.11 | |
| 11 | 0720-019 | R/B 0720-036 | 1 | $741.95 | |
| 12 | 2623-042 | SCREW,SHOULDER-TSBH-M6-1.0 X 18 | 1 | $1.78 | |
| 13 | 1623-025 | GROMMET,SCREW-PLASTIC | 1 | $0.95 | |
| 14 | 6606-881 | WINDSHIELD,MID-Z3 WHITE | 1 | $262.95 |
