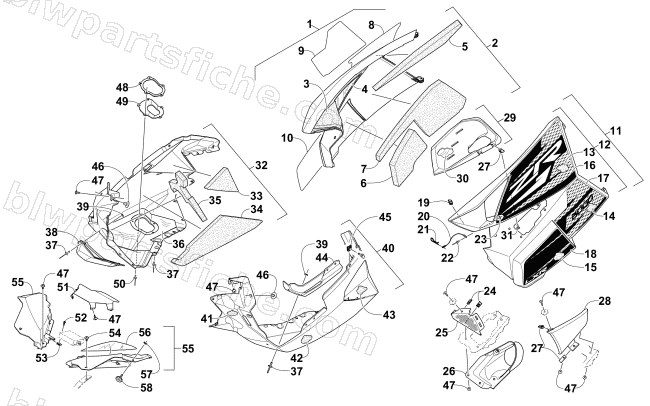

2015 Arctic Cat ZR 8000 LXR — SKID PLATE AND SIDE PANEL ASSEMBLY
2015 ZR 8000 LXR
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 4718-432 | PANEL,SIDE-RH W/DECALS (ZR 8000 LXR) | 1 | $359.95 | |
| 2 | 3718-180 | PANEL,SIDE-RH WITH FOAM-BLK (2 STROKE) | 1 | $267.95 | |
| 3 | 0617-626 | FOAM,UPPER SIDE PANEL-FRT-RH | 1 | $4.26 | |
| 4 | 6606-414 | FOIL,PROTECTIVE-MIDDLE SIDE PANEL-RH | 1 | $1.92 | |
| 5 | 0617-628 | FOAM,UPPER SIDE PANEL-REAR-RH | 1 | $37.95 | |
| 6 | 0617-632 | FOAM,LWR SIDE PANEL-FRT-RH | 1 | $22.01 | |
| 7 | 0617-634 | FOAM,LWR SIDE PANEL-REAR-RH | 1 | $39.95 | |
| 8 | 1621-572 | DECAL,SIDE PANEL-UPR "ZR" RH | 1 | $39.95 | |
| 9 | 1621-582 | DECAL,SIDE PANEL-LWR "8000" RH | 1 | $34.95 | |
| 10 | 1621-586 | DECAL,SIDE PANEL-FWD "LXR" RH | 1 | $26.95 | |
| 11 | 4718-433 | PANEL,SIDE-LH W/DECALS (ZR 8000 LXR) | 1 | $359.95 | |
| 12 | 4718-553 | PANEL,SIDE-LH-W/FOAM-BLK | 1 | $267.95 | |
| 13 | 0617-629 | FOAM,UPPER SIDE PANEL-REAR-LH | 1 | $16.49 | |
| 14 | 0617-635 | FOAM,LWR SIDE PANEL-REAR-LH | 1 | $12.35 | |
| 15 | 0617-681 | FOAM,LWR SIDE PANEL-FRT-LH | 1 | $5.65 | |
| 16 | 1621-573 | DECAL,SIDE PANEL-UPR "ZR" LH | 1 | $39.95 | |
| 17 | 1621-583 | DECAL,SIDE PANEL-LWR "8000" LH | 1 | $34.95 | |
| 18 | 1621-587 | DECAL,SIDE PANEL-FWD "LXR" LH | 1 | $26.95 | |
| 19 | 1623-637 | CLIP,U-NUT (M5) | 1 | $2.47 | |
| 20 | 0607-447 | CABLE,5"-HAIRPIN | 1 | $5.37 | |
| 21 | 0605-283 | HAIRPIN,COTTER | 1 | $1.23 | |
| 22 | 8060-486 | RIVET, BLIND-DH SS54 ZINC | 1 | $0.40 | |
| 23 | 8050-127 | WASHER,FLAT- #8 X .375 X .049 Z&Y | 1 | $1.37 | |
| 24 | 1623-052 | NUT,U | 1 | $0.95 | |
| 25 | 6606-925 | SCREEN,INTAKE | 1 | $34.95 | |
| 26 | 2602-794 | DUCT,INTAKE-INNER | 1 | $27.95 | |
| 27 | 1623-030 | NUT,SPEED-#10B U TYPE | 1 | $0.95 | |
| 28 | 2602-793 | DUCT,INTAKE-OUTER-BLK | 1 | $19.25 | |
| 29 | 1702-369 | DUCT,AIR-CLUTCH W/FOIL | 1 | $39.95 | |
| 30 | 6606-694 | FOIL,CLUTCH DUCT-2 STROKE | 1 | $3.71 | |
| 31 | 0623-797 | SCREW,SELF TAP-TSTH 10-12X1/2 WO/GP | 1 | $0.45 | |
| 32 | 3718-422 | PLATE,SKID-RH-W/FOAM | 1 | $192.95 | |
| 33 | 0617-640 | FOAM,SKID PLATE-REAR-RH | 1 | $3.57 | |
| 34 | 0617-638 | FOAM,SKID PLATE-MIDDLE-RH | 1 | $43.95 | |
| 35 | 0617-636 | FOAM,SKID PLATE-FRT-RH | 1 | $37.95 | |
| 36 | 2612-850 | R/B 3612-325 | 1 | $19.95 | |
| 37 | 8061-708 | RIVET, BLIND-LF SS66 BLACK | 1 | $0.95 | |
| 38 | 2612-754 | SHIELD,RESONATOR-SKID PLATE | 1 | $29.95 | |
| 39 | 0123-802 | WASHER,FLAT .194X.50X.048-Z&Y | 1 | $0.12 | |
| 40 | 3718-789 | PLATE,SKID-REAR LH W/FOAM | 1 | $110.95 | |
| 41 | 0617-637 | FOAM,SKID PLATE-FRT-LH | 1 | $16.49 | |
| 42 | 0617-639 | FOAM,SKID PLATE-MIDDLE-LH | 1 | $16.49 | |
| 43 | 0617-641 | FOAM,SKID PLATE-REAR-LH | 1 | $3.99 | |
| 44 | 6606-613 | RETAINER,TAB-SIDE PANEL | 1 | $12.35 | |
| 45 | 2623-005 | CLIP,RECEPTACLE-1/4 TURN STUD | 1 | $2.61 | |
| 46 | 6606-592 | PIN,RETAINER-BODY PLASTIC | 1 | $3.57 | |
| 47 | 1623-129 | R/B 2623-166 | 1 | $0.35 | |
| 48 | 2612-796 | PLATE,EXHAUST OUTLET | 1 | $25.95 | |
| 49 | 2612-795 | SEAL,EXHAUT OUTLET-2 STRK | 1 | $17.87 | |
| 50 | 8061-710 | RIVET,BLIND-LF SS68 BLACK | 1 | $1.09 | |
| 51 | 6606-295 | SHIELD,HEAT-ECU | 1 | $24.95 | |
| 52 | 8408-620 | SCREW,CAP-HFH M6X1.0X20 CL8.8 Z&Y | 1 | $1.37 | |
| 53 | 0423-031 | NUT,SPEED M6 X 1.0 U-TYPE | 1 | $0.95 | |
| 54 | 0623-784 | R/B 2623-163 | 1 | $0.35 | |
| 55 | 6606-342 | PANEL,FILLER-RH-BLK | 1 | $19.25 | |
| 55 | 3718-303 | PANEL,FILLER W/FOIL-LH | 1 | $19.25 | |
| 56 | 6606-405 | FOIL,PROTECTIVE-FILLER PANEL-LH | 1 | $27.95 | |
| 57 | 2623-001 | RETAINER,PUSHNUT-3/16" STUD | 1 | $0.40 | |
| 58 | 1623-999 | SCREW,1" RND KNOB-M5X0.8X20mm LG | 1 | $4.95 |
