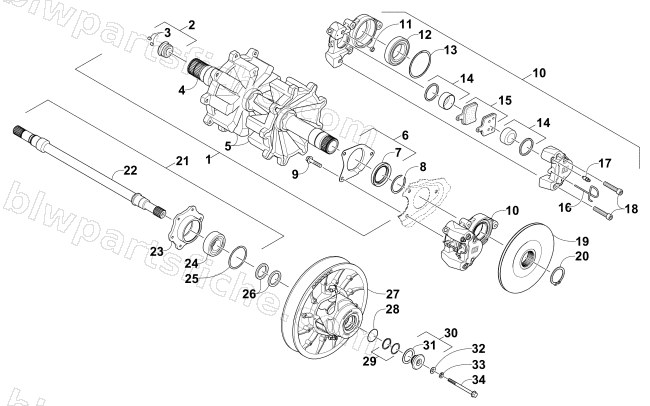

DRIVE TRAIN SHAFTS AND BRAKE ASSEMBLIES
2015 ZR 8000 SNO PRO LTD
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0728-224 | R/B 0728-235 | 1 | $450.95 | |
| 2 | 1702-072 | PLUG,DRIVE SHAFT-W/MAGNET | 1 | $16.49 | |
| 4 | 2602-740 | SHAFT,DRIVE-HEX-45MM BOTTOM BRAKE | 1 | $259.95 | |
| 5 | 2602-771 | SPROCKET,DRIVE-9T-2.86P-MACH | 1 | $69.95 | |
| 6 | 1702-206 | R/B 1702-502 | 1 | $24.95 | |
| 8 | 2602-233 | SNAP RING(CLR-175) | 1 | $2.19 | |
| 9 | 8408-831 | SCREW,CAP-HFH M8X1.25X30 CL8.8 W/2353 | 1 | $0.95 | |
| 10 | 2602-486 | CALIPER,BRAKE-FIXED/DUAL PISTON | 1 | $425.95 | |
| 11 | 2602-411 | SEAL,CROSSOVER | 1 | $3.44 | |
| 12 | 2602-198 | BEARING (6009-2RSFP-C3) | 1 | $24.77 | |
| 13 | 2602-280 | RING,SNAP(MKA-75) | 1 | $3.57 | |
| 14 | 2602-410 | KIT,PISTONS/SEALS | 1 | $75.95 | |
| 15 | 1702-245 | PAD SET,BRAKE | 1 | $114.95 | |
| 17 | 2602-408 | FITTING,BLEEDER | 1 | $5.65 | |
| 18 | 2602-412 | BOLT,BRAKE CALIPER | 1 | $4.68 | |
| 19 | 2602-249 | DISK,BRAKE-FORGED-34T SPLINED-BOTTOM | 1 | $231.95 | |
| 20 | 2602-629 | SNAP RING-(MSH-43) | 1 | $2.61 | |
| 21 | 1702-364 | SHAFT,DRIVEN-W/BEARING-ASSY | 1 | $197.95 | |
| 22 | 2602-764 | SHAFT,DRIVEN-FWD | 1 | $163.95 | |
| 23 | 2602-454 | HUB,BEARING HOUSING-MACH | 1 | $45.95 | |
| 24 | 2602-247 | BEARING,30 X 62 X 20 - 2206 -2RS | 1 | $20.63 | |
| 25 | 2602-236 | SNAP RING(MKA-62) | 1 | $3.16 | |
| 26 | 0648-816 | WASHER, DRIVEN .0.76 mm THICK | 1 | $8.21 | |
| 26 | 0648-817 | WASHER, DRIVEN-1.52mm THICK | 1 | $5.65 | |
| 26 | 0648-818 | WASHER, DRIVEN -2.29mm THICK | 1 | $2.95 | |
| 27 | 0726-340 | CLUTCH,DRIVEN-44/40 202-284 BLUE-2 STRK | 1 | $735.95 | |
| 28 | 0648-441 | O-RING,ADJUSTER SHEAVE (2-121) | 1 | $0.54 | |
| 29 | 0648-715 | WASHER, DRIVEN .030 THICK | 1 | $1.23 | |
| 29 | 0648-716 | WASHER, DRIVEN .060 THICK | 1 | $3.44 | |
| 29 | 0648-714 | WASHER, DRIVEN .090 THICK | 1 | $2.06 | |
| 30 | 1702-114 | KIT,ADJUSTER-SHEAVE W/WASHER | 1 | $32.95 | |
| 31 | 0648-788 | WASHER,THRUST-DRIVEN ADJUSTER | 1 | $1.92 | |
| 32 | 8450-127 | WASHER,FLAT-M8-9.12 X 18.80 X 2.30Z&Y | 1 | $0.95 | |
| 33 | 8051-242 | WASHER,SPR LOCK-5/16 .314X.583X.078 Z&Y | 1 | $1.64 | |
| 34 | 8408-801 | SCREW,CAP-HFH M8X1.25X100 CL8.8Z&Y/W2353 | 1 | $20.63 |
