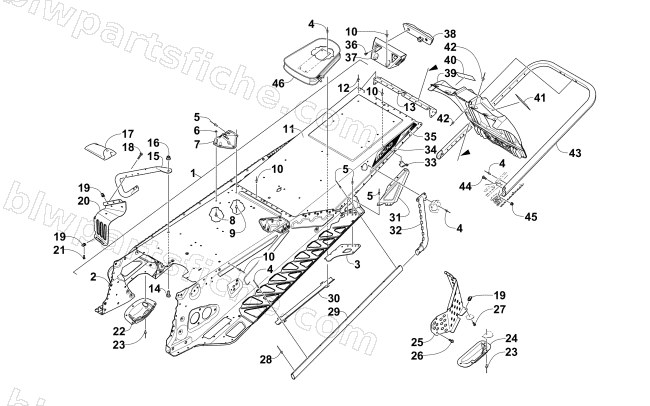

2015 Arctic Cat ZR 8000 SNO PRO — TUNNEL, REAR BUMPER, AND SNOWFLAP ASSEMBLY
2015 ZR 8000 SNO PRO
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 0 | 1707-823 | CHASSIS,128" 2 STRK-ASSY | 1 | $2,563.95 | |
| 1 | 1707-912 | TUNNEL,HP-S/P ASSY | 1 | $710.95 | |
| 2 | 1707-981 | TUNNEL,FRONT-F-SP ASSY | 1 | $515.95 | |
| 5 | 1623-241 | RIVET,3/16 HUCK-M6 | 1 | $1.92 | |
| 6 | 8422-502 | NUT, M5 X 0.8 NYLOC - YL ZN | 1 | $0.40 | |
| 7 | 1707-644 | BRKT,SPAR SUPPORT-RH-MACH | 1 | $27.95 | |
| 7 | 1707-645 | BRKT,SPAR SUPPORT-LH-MACH | 1 | $27.95 | |
| 8 | 8476-512 | SCREW,MACH-TSTRH M5X0.8X12 Z&Y | 1 | $1.23 | |
| 9 | 1623-257 | RIVET,3/16 HUCK-M5 | 1 | $2.06 | |
| 10 | 8060-682 | RIVET,BLIND-DH SS62 ZINC | 1 | $0.12 | |
| 11 | 1607-250 | TUNNEL,REAR-128" | 1 | $181.95 | |
| 12 | 8060-484 | RIVET, BLIND-DH SS53 ZINC | 1 | $0.40 | |
| 13 | 1607-104 | CLOSE OFF,TUNNEL-MC | 1 | $38.95 | |
| 14 | 8476-820 | SCREW,MACH-TSTRH M8X1.25X20 Z&Y | 1 | $0.95 | |
| 15 | 1707-454 | HOOK,TOE-RH PTD BLK | 1 | $65.95 | |
| 15 | 1707-455 | HOOK,TOE-LH PTD BLK | 1 | $65.95 | |
| 16 | 8427-802 | NUT,HEX FLG-NYL LOCK M8X1.25 CL8 Z&Y | 1 | $0.54 | |
| 17 | 0744-076 | KIT,TOOL BAG-2 STROKE-ASSY | 1 | $75.95 | |
| 18 | 8468-535 | SCREW,MACH-TSPNH M5X0.8X35 CL8.8 BLK | 1 | $0.95 | |
| 19 | 1623-637 | CLIP,U-NUT (M5) | 1 | $2.47 | |
| 20 | 0607-996 | TOE STOP,RH - FORMED | 1 | $24.77 | |
| 20 | 0607-997 | TOE STOP,LH - FORMED | 1 | $24.77 | |
| 21 | 8470-516 | SCREW,MACH-TSPNH M5X.8X16 CL8.8 Z&Y | 1 | $0.26 | |
| 22 | 1607-109 | PROTECTOR,CHAIN CASE | 1 | $5.51 | |
| 23 | 8061-708 | RIVET, BLIND-LF SS66 BLACK | 1 | $0.95 | |
| 24 | 0607-351 | PROTECTOR,BRAKE DISC-BOTTOM | 1 | $12.35 | |
| 25 | 1607-371 | COVER,SHIELD-BRAKE DISC | 1 | $102.95 | |
| 26 | 8408-613 | SCREW,CAP-HFH M6X1.0X12 CL8.8 Z&Y W/2353 | 1 | $1.50 | |
| 27 | 8470-520 | SCREW,MACH-TSPNH M5X.8X20 CL8.8 Z&Y | 1 | $0.40 | |
| 28 | 1623-130 | RIVET,3/16 HUCK-M4 | 1 | $1.64 | |
| 29 | 1607-092 | EDGE,RUNNING BOARD-MACH | 1 | $57.95 | |
| 30 | 0630-308 | PROTECTOR,TAILLIGHT HARNESS-128" | 1 | $16.49 | |
| 31 | 1607-162 | GUSSET,RUNNING BOARD-RH | 1 | $17.87 | |
| 31 | 1607-163 | GUSSET,RUNNING BOARD-LH | 1 | $17.87 | |
| 32 | 1607-040 | GUSSET,TUNNEL-RH | 1 | $20.63 | |
| 32 | 1607-041 | GUSSET,TUNNEL-LH | 1 | $20.63 | |
| 33 | 0630-292 | PROTECTOR,TAILLIGHT HARNESS-26.5mm | 1 | $15.11 | |
| 34 | 1621-518 | DECAL,TUNNEL-129" "8000" RH GRN | 1 | $24.77 | |
| 34 | 1621-519 | DECAL,TUNNEL-129" "8000" LH GRN | 1 | $24.77 | |
| 34 | 1621-482 | DECAL,TUNNEL-129" "8000" RH ORN | 1 | $24.77 | |
| 34 | 1621-483 | DECAL,TUNNEL-129" "8000" LH ORN | 1 | $24.77 | |
| 35 | 0621-990 | DECAL,REFLECTOR-RED | 1 | $15.11 | |
| 36 | 8470-510 | SCREW,MACH-TSPNH M5X.8X10 CL8.8 Z&Y | 1 | $0.68 | |
| 37 | 0630-328 | HOUSING,TAILLIGHT | 1 | $29.95 | |
| 38 | 0609-898 | TAILLIGHT,RED | 1 | $66.95 | |
| 39 | 6606-394 | FLAP,SNOW-MTN-BLK | 1 | $106.95 | |
| 40 | 5611-852 | DECAL,WARNING-TOWING/TRACK-FRENCH | 1 | $2.47 | |
| 41 | 5611-853 | DECAL,WARNING-TOWING/TRACK-ENGLISH | 1 | $2.47 | |
| 42 | 8061-706 | RIVET,BLIND-LF SS64 BLACK | 1 | $0.95 | |
| 43 | 2707-578 | BUMPER,REAR-129"-PTD-BLK | 1 | $101.95 | |
| 44 | 8476-620 | SCREW,MACH-TSTRH M6X1.0X20 Z&Y | 1 | $0.40 | |
| 45 | 8427-602 | NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z&Y | 1 | $0.12 | |
| 46 | 6606-615 | BAG,BELT | 1 | $46.95 |
