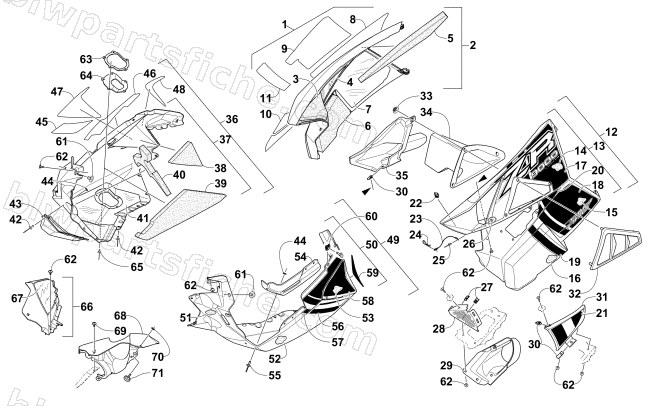

2015 Arctic Cat ZR 9000 SNO PRO LTD — SKID PLATE AND SIDE PANEL ASSEMBLY
2015 ZR 9000 SNO PRO LTD
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 4718-292 | PANEL,SIDE-RH W/DECALS(ZR 9000 LTD ORN) | 1 | $359.95 | |
| 2 | 3718-454 | PANEL,SIDE-RH WHT-W/FOAM-4 STRK | 1 | $137.95 | |
| 3 | 0617-626 | FOAM,UPPER SIDE PANEL-FRT-RH | 1 | $4.26 | |
| 4 | 6606-414 | FOIL,PROTECTIVE-MIDDLE SIDE PANEL-RH | 1 | $1.92 | |
| 5 | 0617-628 | FOAM,UPPER SIDE PANEL-REAR-RH | 1 | $37.95 | |
| 6 | 0617-632 | FOAM,LWR SIDE PANEL-FRT-RH | 1 | $22.01 | |
| 7 | 6606-416 | FOIL,PROTECTIVE-LWR SIDE PANEL-REAR-RH | 1 | $3.57 | |
| 8 | 1621-608 | DECAL,SIDE PANEL-UPR-ORN-RH (ZR9000 LTD) | 1 | $110.95 | |
| 9 | 1621-622 | DECAL,SIDE PANEL-MID-ORN-RH (LTD) | 1 | $5.92 | |
| 10 | 1621-626 | DECAL,SIDE PANEL-FWD-ORN-RH (LTD) | 1 | $15.11 | |
| 11 | 1621-624 | DECAL,SIDE PANEL-LWR-ORN-RH (LTD) | 1 | $30.95 | |
| 12 | 4718-293 | PANEL,SIDE-LH W/DECALS(ZR 9000 LTD ORN) | 1 | $359.95 | |
| 13 | 4718-559 | PANEL,SIDE-LH-W/FOAM-WHT TURBO | 1 | $259.95 | |
| 14 | 0617-669 | FOAM,UPPER SIDE PANEL-REAR LH-4 STRK | 1 | $12.35 | |
| 15 | 0617-635 | FOAM,LWR SIDE PANEL-REAR-LH | 1 | $12.35 | |
| 16 | 0617-681 | FOAM,LWR SIDE PANEL-FRT-LH | 1 | $5.65 | |
| 17 | 1621-609 | DECAL,SIDE PANEL-UPR-ORN-LH (ZR9000 LTD) | 1 | $110.95 | |
| 18 | 1621-625 | DECAL,SIDE PANEL-LWR-ORN-LH (LTD) | 1 | $30.95 | |
| 19 | 1621-627 | DECAL,SIDE PANEL-FWD-ORN-LH (LTD) | 1 | $15.11 | |
| 20 | 2621-295 | DECAL,SIDE-PANEL-MID-REAR-LH (LTD ORN) | 1 | $9.59 | |
| 21 | 2621-293 | DECAL,SIDE-PANEL-MID-VENT-LH (LTD ORN) | 1 | $9.59 | |
| 22 | 1623-637 | CLIP,U-NUT (M5) | 1 | $2.47 | |
| 23 | 0607-447 | CABLE,5"-HAIRPIN | 1 | $5.37 | |
| 24 | 0605-283 | HAIRPIN,COTTER | 1 | $1.23 | |
| 25 | 8060-486 | RIVET, BLIND-DH SS54 ZINC | 1 | $0.40 | |
| 26 | 8050-127 | WASHER,FLAT- #8 X .375 X .049 Z&Y | 1 | $1.37 | |
| 27 | 1623-052 | NUT,U | 1 | $0.95 | |
| 28 | 6606-925 | SCREEN,INTAKE | 1 | $34.95 | |
| 29 | 2602-794 | DUCT,INTAKE-INNER | 1 | $27.95 | |
| 30 | 1623-030 | NUT,SPEED-#10B U TYPE | 1 | $0.95 | |
| 31 | 2602-803 | DUCT,INTAKE-OUTER-WHT | 1 | $19.25 | |
| 32 | 0608-648 | COVER,DUCT-HEAT-TURBO | 1 | $16.49 | |
| 33 | 1623-469 | NUT,STAMPED- 0.330 | 1 | $1.23 | |
| 34 | 0708-596 | DUCT,HEAT-TURBO-ROUTED | 1 | $62.95 | |
| 35 | 1702-367 | DUCT,BELT COOLING-4 STRK-ROUTED | 1 | $42.95 | |
| 36 | 4718-188 | PLATE,SKID-RH-WHT/ORN W/DECALS (LTD) | 1 | $374.95 | |
| 37 | 4718-532 | PLATE,SKID-RH WHT-W/FOAM (8000) | 1 | $217.95 | |
| 38 | 0617-640 | FOAM,SKID PLATE-REAR-RH | 1 | $3.57 | |
| 39 | 0617-638 | FOAM,SKID PLATE-MIDDLE-RH | 1 | $43.95 | |
| 40 | 0617-636 | FOAM,SKID PLATE-FRT-RH | 1 | $37.95 | |
| 41 | 2612-850 | R/B 3612-325 | 1 | $19.95 | |
| 42 | 8061-708 | RIVET, BLIND-LF SS66 BLACK | 1 | $0.95 | |
| 43 | 2612-754 | SHIELD,RESONATOR-SKID PLATE | 1 | $29.95 | |
| 44 | 0123-802 | WASHER,FLAT .194X.50X.048-Z&Y | 1 | $0.12 | |
| 45 | 1621-630 | DECAL,SKID PLATE-FWD-ORN-RH (LTD) | 1 | $20.63 | |
| 46 | 1621-628 | DECAL,SKID PLATE-UPPER-ORN-RH (LTD) | 1 | $6.75 | |
| 47 | 1621-680 | DECAL,SKID PLATE-MID-RH (LTD) | 1 | $16.49 | |
| 48 | 1621-682 | DECAL,SKID PLATE-REAR-RH (LTD) | 1 | $13.73 | |
| 49 | 4718-189 | PLATE,SKID-LH-WHT/ORN W/DECALS (LTD) | 1 | $152.95 | |
| 50 | 4718-533 | PLATE,SKID-LH-W/FOAM-WHT | 1 | $126.95 | |
| 51 | 0617-637 | FOAM,SKID PLATE-FRT-LH | 1 | $16.49 | |
| 52 | 0617-639 | FOAM,SKID PLATE-MIDDLE-LH | 1 | $16.49 | |
| 53 | 0617-641 | FOAM,SKID PLATE-REAR-LH | 1 | $3.99 | |
| 54 | 6606-613 | RETAINER,TAB-SIDE PANEL | 1 | $12.35 | |
| 55 | 1621-631 | DECAL,SKID PLATE-FWD-ORN-LH (LTD) | 1 | $19.25 | |
| 56 | 1621-629 | DECAL,SKID PLATE-UPPER-ORN-LH (LTD) | 1 | $6.75 | |
| 57 | 1621-681 | DECAL,SKID PLATE-MID-LH (LTD) | 1 | $5.37 | |
| 58 | 1621-683 | DECAL,SKID PLATE-REAR-LH (LTD) | 1 | $13.73 | |
| 59 | 2623-005 | CLIP,RECEPTACLE-1/4 TURN STUD | 1 | $2.61 | |
| 60 | 6606-592 | PIN,RETAINER-BODY PLASTIC | 1 | $3.57 | |
| 61 | 1623-129 | R/B 2623-166 | 1 | $0.35 | |
| 62 | 2612-796 | PLATE,EXHAUST OUTLET | 1 | $25.95 | |
| 63 | 2612-799 | SEAL,EXHAUST OUTLET-4 STRK | 1 | $17.87 | |
| 64 | 8061-710 | RIVET,BLIND-LF SS68 BLACK | 1 | $1.09 | |
| 65 | 3718-302 | PANEL,FILLER W/FOIL-RH | 1 | $19.25 | |
| 66 | 6606-404 | FOIL,PROTECTIVE-FILLER PANEL-RH | 1 | $2.61 | |
| 67 | 6606-351 | PANEL,FILLER-LH-TURBO-BLK | 1 | $67.95 | |
| 68 | 0623-784 | R/B 2623-163 | 1 | $0.35 | |
| 69 | 2623-001 | RETAINER,PUSHNUT-3/16" STUD | 1 | $0.40 | |
| 70 | 1623-999 | SCREW,1" RND KNOB-M5X0.8X20mm LG | 1 | $4.95 |
