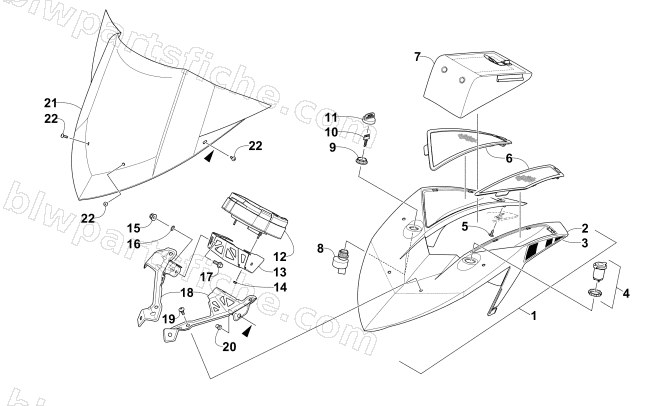

2015 Arctic Cat ZR 9000 SNO PRO LTD — WINDSHIELD AND INSTRUMENTS ASSEMBLIES
2015 ZR 9000 SNO PRO LTD
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 4718-108 | COWL,HEADLIGHT-WHT-W/ORN DECAL(4 STRK) | 1 | $175.95 | |
| 2 | 6606-401 | COWL,HEADLIGHT-NA-WHT | 1 | $150.95 | |
| 3 | 1621-598 | DECAL,COWL-ORN-RH (LTD) | 1 | $17.87 | |
| 3 | 1621-599 | DECAL,COWL-ORN-LH (LTD) | 1 | $17.87 | |
| 4 | 0641-897 | OUTLET, ACCESSORY - 12V DC | 1 | $23.39 | |
| 5 | 1623-129 | R/B 2623-166 | 1 | $0.35 | |
| 6 | 0608-736 | SCREEN,INTAKE-INJ MOLD-RH | 1 | $19.25 | |
| 6 | 0608-737 | SCREEN,INTAKE-INJ MOLD-LH | 1 | $19.25 | |
| 7 | 6606-566 | BAG,GOGGLE | 1 | $77.95 | |
| 8 | 0609-911 | SWITCH,IGNITION-W/KEY | 1 | $66.95 | |
| 9 | 0430-050 | NUT,FLANGE-KEYSWITCH | 1 | $1.92 | |
| 10 | 0430-042 | KEY,IGNITION SERIES-Y (LH BLANK) | 1 | $5.92 | |
| 10 | 0430-043 | KEY,IGNITION SERIES-Z (RH BLANK) | 1 | $11.95 | |
| 11 | 0430-054 | COVER,KEY | 1 | $15.11 | |
| 12 | 0620-390 | SPEEDO,LCD-4 STROKE HP CALIB-DLX | 1 | $683.95 | |
| 13 | 5706-651 | BRKT,GAUGE-CENTER-PTD WHT | 1 | $32.95 | |
| 14 | 0423-493 | NUT,HEX-M4-.7 W/STAR WSR | 1 | $0.26 | |
| 15 | 8427-602 | NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z&Y | 1 | $0.12 | |
| 16 | 8053-212 | WASHER,LOCK-1/4 EXT TOOTH TYP A Z&Y | 1 | $0.12 | |
| 17 | 8410-616 | SCREW,CAP-HFH M6X1.0X16 CL8.8 RIE BLK | 1 | $1.37 | |
| 18 | 5706-652 | BRKT,GAUGE-RH-PTD WHT | 1 | $26.95 | |
| 18 | 5706-653 | BRKT,GAUGE-LH-PTD WHT | 1 | $26.95 | |
| 19 | 0423-355 | SCREW, SHOULDER-M6-1.0 X 18-BLK | 1 | $0.95 | |
| 20 | 1623-764 | NUT EXPANSION-M5-0.8 | 1 | $5.45 | |
| 21 | 6606-880 | WINDSHIELD,MID-WHITE | 1 | $150.95 | |
| 22 | 8477-516 | SCREW,MACH-TSTRH M5X0.8X16 Z&BLK | 1 | $0.68 |
