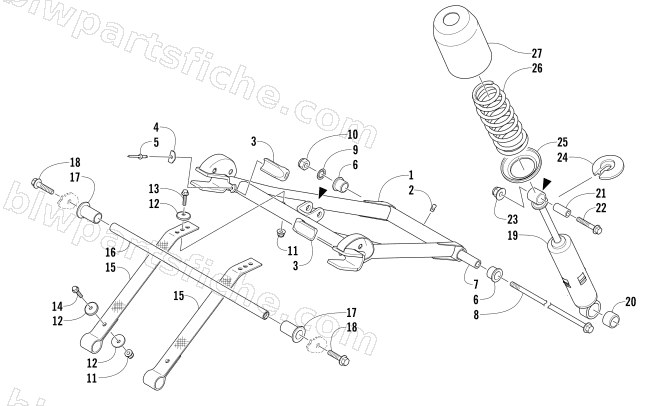

REAR SUSPENSION FRONT ARM ASSEMBLY
2016 BEARCAT 2000 LT
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1704-671 | ARM, FRONT-FABR | 1 | $223.95 | |
| 2 | 1623-010 | FIT,GREASE-1/4-28 UNF-SELF THREAD | 1 | $1.92 | |
| 3 | 3604-141 | BUMPER,SLIDER-FRONT | 1 | $4.26 | |
| 4 | 3604-968 | PLATE,RETAINING-SLIDER BUMPER | 1 | $2.75 | |
| 5 | 8060-708 | RIVET,BLIND-DH SS66 BLK | 1 | $1.37 | |
| 6 | 0104-386 | BUSHING,REAR ARM | 1 | $4.26 | |
| 7 | 3604-272 | AXLE,FRT ARM-LWR-M10 X 219.25 | 1 | $20.63 | |
| 8 | 1423-064 | R/B 1423-431 | 1 | $20.95 | |
| 9 | 1623-992 | WASHER,LOCK-M10 INTL TOOTH TYP J Z&C | 1 | $0.26 | |
| 10 | 8422-002 | NUT,HEX-THK NYL M10X1.25 CL8 Z&Y | 1 | $0.95 | |
| 11 | 8427-602 | NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z&Y | 1 | $0.12 | |
| 12 | 8450-109 | WASHER,FLAT M6-6.87X25.4X2.32 Z&Y | 1 | $0.68 | |
| 13 | 8408-620 | SCREW,CAP-HFH M6X1.0X20 CL8.8 Z&Y | 1 | $1.37 | |
| 14 | 8408-630 | SCREW,CAP-HFH M6X1.0X30 CL8.8 Z&Y | 1 | $0.95 | |
| 15 | 3604-274 | STRAP,LIMITER-31.75 X 421.6 | 1 | $17.87 | |
| 16 | 3604-234 | AXLE,FRONT ARM-15.88 OD X 380 | 1 | $57.95 | |
| 17 | 3604-233 | BUSHING,FRONT SLIDER | 1 | $17.87 | |
| 18 | 8408-041 | SCREW,CAP-HFH M10X1.25X40 CL8.8 W/2353 | 1 | $0.95 | |
| 19 | 3604-334 | SHOCK, FRONT ARM-TWIN TUBE-299mm | 1 | $211.95 | |
| 20 | 1604-791 | BUSHING,SHOCK-.890ID X .800 | 1 | $15.11 | |
| 21 | 3604-273 | AXLE,SHOCK-FRT ARM-M10 | 1 | $2.88 | |
| 22 | 8408-050 | SCREW,CAP-HFH M10X1.25X50 CL8.8 Z&Y | 1 | $2.75 | |
| 23 | 8427-002 | NUT,HEX FLG-NYL LOCK M10X1.25 CL8 Z&Y | 1 | $0.95 | |
| 24 | 1603-889 | RETAINER, SPRING | 1 | $12.35 | |
| 25 | 2603-719 | RETAINER,SPRING-SHOCK | 1 | $16.49 | |
| 26 | 1704-236 | SPRING,COMP-FRT ARM -110#-PTD BLK | 1 | $49.95 | |
| 27 | 0604-790 | COVER,SUSPENSION SPRING (SHORT) | 1 | $24.77 |
