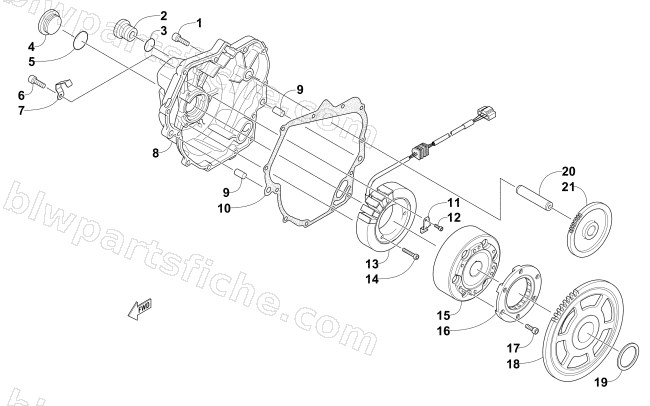

2016 Arctic Cat BEARCAT 7000 XT EARLY BUILD — MAGNETO AND COVER ASSEMBLY
2016 BEARCAT 7000 XT EARLY BUILD
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3020-345 | SCREW,CAP-HSH | 1 | $12.35 | |
| 2 | 3020-346 | PLUG | 1 | $16.49 | |
| 3 | 3020-347 | O-RING | 1 | $5.37 | |
| 4 | 3020-348 | PLUG | 1 | $30.95 | |
| 5 | 3020-349 | O-RING | 1 | $5.37 | |
| 6 | 3020-314 | SCREW,CAP-HSH | 1 | $4.26 | |
| 7 | 3020-350 | BRACKET,RETAINING | 1 | $12.35 | |
| 8 | 3020-351 | COVER,MAGNETO | 1 | $294.95 | |
| 9 | 3020-293 | PIN, DOWEL | 1 | $6.75 | |
| 10 | 3020-352 | GASKET,MAGNETO COVER | 1 | $26.95 | |
| 11 | 3020-353 | BRACKET,RETAINING | 1 | $5.37 | |
| 12 | 3020-354 | SCREW,CAP-HSH | 1 | $3.85 | |
| 13 | 3020-355 | STATOR | 1 | $663.95 | |
| 14 | 3020-356 | SCREW,CAP-HSH | 1 | $12.35 | |
| 15 | 3020-357 | ROTOR/FLYWHEEL | 1 | $838.95 | |
| 16 | 3020-358 | CLUTCH,STARTER-ONE WAY | 1 | $354.95 | |
| 17 | 3020-359 | SCREW,CAP-HSH | 1 | $2.75 | |
| 18 | 3020-360 | GEAR,CLUTCH-STARTER | 1 | $184.95 | |
| 19 | 3020-361 | WASHER | 1 | $4.26 | |
| 20 | 3020-362 | SHAFT,IDLER GEAR | 1 | $8.21 | |
| 21 | 3020-363 | GEAR, IDLER-STARTER | 1 | $128.95 |
