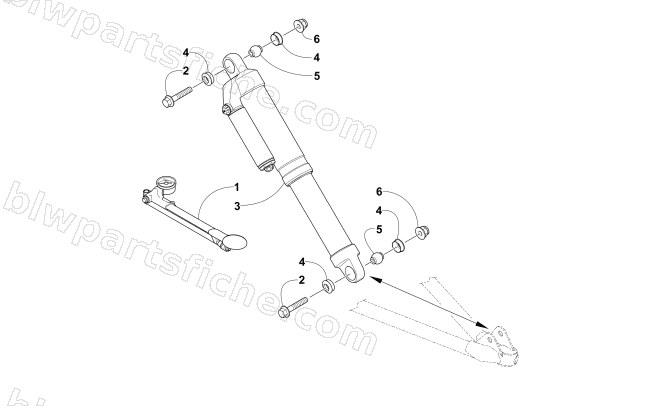

FRONT SHOCK ABSORBER ASSEMBLY
2016 M 8000 HARDCORE LTD 153
Scroll / pinch to zoom · drag to pan · double-click resets
| # |
Part No. |
Description |
Qty |
Price |
|
| 1 |
0641-257 |
PUMP,FOX FLOAT EVOL-DUAL GAUGE |
1 |
$69.95 |
|
| 2 |
8413-850 |
SCREW,CAP-HFH M8X1.25X50 CL10.9 SILV |
1 |
$3.44 |
|
| 4 |
3603-260 |
BUSHING,SHOCK-SPHERICAL-BLK |
1 |
$3.44 |
|
| 5 |
3603-261 |
AXLE,SHOCK - SPHERICAL |
1 |
$16.49 |
|
| 6 |
8437-804 |
NUT,HEX FLG-NYL LOCK M8X1.25 CL10 SILV |
1 |
$0.81 |
|
