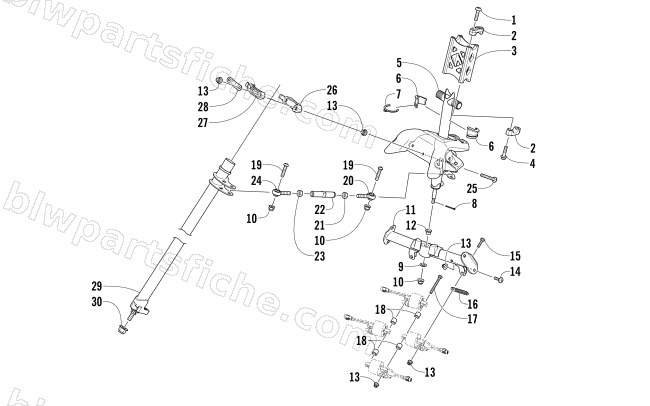

STEERING POST ASSEMBLY
2016 M 8000 LTD 162
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 8477-830 | SCREW,MACH-TSTRH M8X1.25X30 Z&BLK | 1 | $1.78 | |
| 2 | 1705-461 | CAP,STEERING-PTD BLK | 1 | $15.11 | |
| 3 | 1705-415 | RISER,4.5 HANDLEBAR-PTD BLK | 1 | $65.95 | |
| 4 | 8408-830 | SCREW,CAP-HFH M8X1.25X30 CL8.8 Z&Y | 1 | $0.95 | |
| 5 | 1705-395 | POST,STEERING-PTD BLK | 1 | $224.95 | |
| 6 | 1605-054 | BEARING,MTG-STEERING POST-RH | 1 | $1.09 | |
| 6 | 1605-055 | BEARING,MTG-STEERING POST-LH | 1 | $0.60 | |
| 7 | 1605-056 | CLIP,STEERING BEARING | 1 | $3.71 | |
| 8 | 0623-175 | PIN,COTTER 3/32 X 1 | 1 | $0.40 | |
| 9 | 1605-067 | WASHER,THRUST-STEERING-19X10.3X0.8 | 1 | $0.26 | |
| 10 | 8427-802 | NUT,HEX FLG-NYL LOCK M8X1.25 CL8 Z&Y | 1 | $0.54 | |
| 11 | 1705-397 | SUPPORT,STEERING-LWR FAB | 1 | $126.95 | |
| 12 | 1605-057 | BEARING,GFM-1012-10 | 1 | $8.21 | |
| 13 | 8427-602 | NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z&Y | 1 | $0.12 | |
| 14 | 8476-625 | SCREW,MACH-TSTRH M6X1.0X25 Z&Y | 1 | $1.78 | |
| 15 | 8468-625 | SCREW,MACH-TSPNH M6X1.0X25 CL8.8 BLK | 1 | $0.68 | |
| 16 | 1623-984 | CLAMP,WIRE - 76.14MM LG W/6.25 HOLE | 1 | $6.20 | |
| 17 | 8468-665 | SCREW,MACH-TSPNH M6X1.0X65 CL8.8 BLK | 1 | $1.23 | |
| 18 | 1623-041 | SPACER, .325 X .540 X .500 | 1 | $1.92 | |
| 19 | 2623-026 | SCREW,MACH-TSPH-M8X1.25X37 CL 12.9 MZ | 1 | $1.64 | |
| 20 | 1605-032 | ROD END-RH M10X1.25 (8MM BORE) | 1 | $44.95 | |
| 21 | 8420-002 | NUT,HEX - M10 X 1.25 CL8 Z&Y | 1 | $0.68 | |
| 22 | 1605-053 | TUBE,TIE ROD-POST-M/C-M10X1.25X87MM | 1 | $12.35 | |
| 23 | 0423-013 | NUT,HEX M10-1.25(LH) Z&Y | 1 | $1.09 | |
| 24 | 1605-051 | ROD END-LH M10X1.25 (8MM BORE) | 1 | $27.95 | |
| 25 | 2623-079 | SCREW,MACH-TSPNH M6X1.0X60 CL8.8 Z&Y | 1 | $1.78 | |
| 26 | 1605-128 | BLOCK,MTG-STEERING POST-LOWER | 1 | $3.57 | |
| 27 | 1605-127 | BLOCK,MTG-STEERING POST-UPPER | 1 | $3.57 | |
| 28 | 0605-998 | PLATE,RETAINING-STEERING POST | 1 | $2.61 | |
| 29 | 1705-399 | POST,STEERING-SECONDARY-PTD BLK | 1 | $158.95 | |
| 30 | 2623-076 | R/B 2623-202 | 1 | $1.39 |
