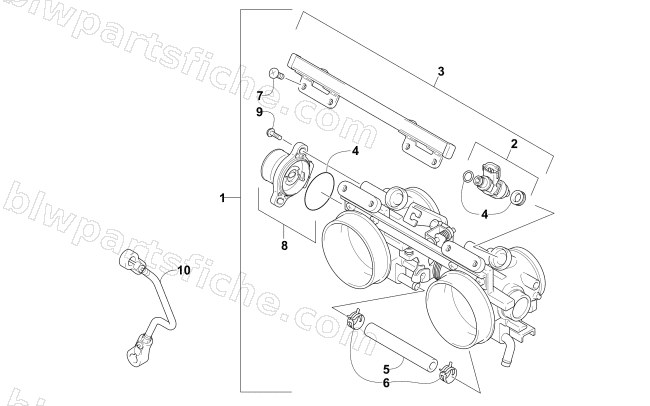

THROTTLE BODY ASSEMBLY
2016 M 8000 LTD 162
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3007-890 | THROTTLE BODY ASSY | 1 | $2,282.95 | |
| 2 | 3007-891 | INJECTOR,FUEL-ASSY(CIRCLE) | 1 | $663.95 | |
| 2 | 3007-892 | INJECTOR,FUEL-ASSY(SQUARE) | 1 | $663.95 | |
| 2 | 3007-893 | INJECTOR,FUEL-ASSY(TRIANGLE) | 1 | $644.95 | |
| 3 | 3007-442 | PIPE,FUEL DELIVERY | 1 | $711.95 | |
| 4 | 3005-692 | O-RING SET | 1 | $118.95 | |
| 5 | 3006-723 | HOSE | 1 | $56.95 | |
| 6 | 3004-193 | CLAMP, HOSE-EFI THROTTLE BODY,M12 | 1 | $4.95 | |
| 7 | 3007-443 | SCREW | 1 | $2.06 | |
| 8 | 3006-939 | THROTTLE POSITION SENSOR | 1 | $561.95 | |
| 9 | 3007-026 | SCREW | 1 | $2.47 | |
| 10 | 3007-538 | ROD,OIL PUMP CONTROL | 1 | $89.95 |
